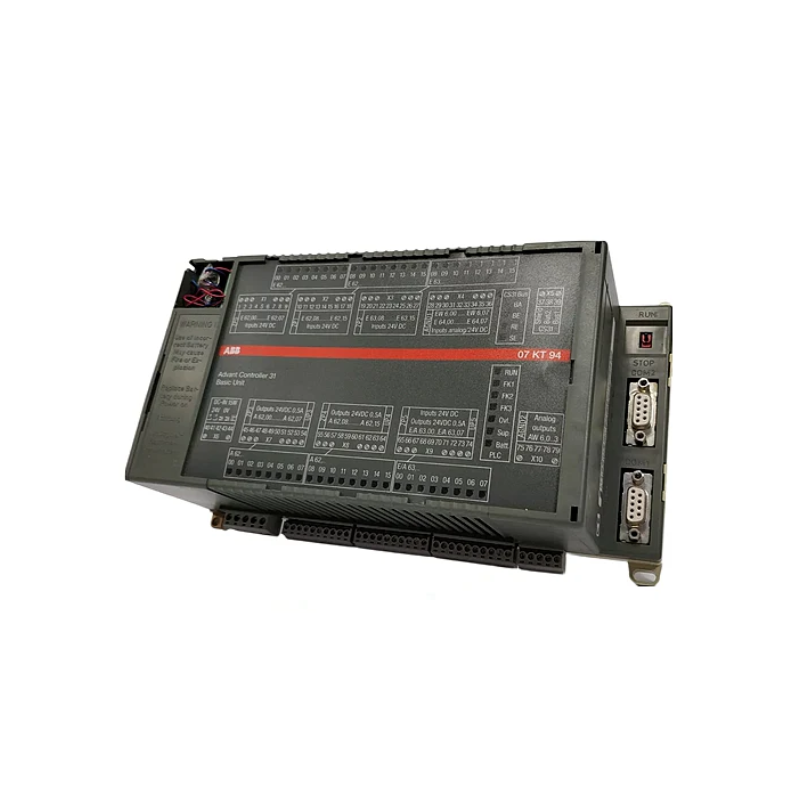

ABB 07KT94 GJR5252100R0161 Programmable Logic Controller (PLC) Price Advantage
1. Product Overview
The ABB 07KT94 GJR5252100R0161 is a high-performance programmable logic controller (PLC) within the Advant Controller 31 series, designed for decentralized automation systems. It integrates intelligent I/O modules, advanced communication interfaces, and robust processing capabilities to meet demanding industrial automation requirements. This unit supports standalone operation, master/slave bus configurations, and flexible expansion via the CS31 system bus. With configurable analog/digital I/O, high-speed counters, and dual serial interfaces, it is ideal for complex control tasks in manufacturing, process automation, and machinery applications.
2. Technical Specifications
| Category | Specification |
|---|---|
| Power Supply | 24 V DC (±15%), 0.4 A max (excluding external load) |
| Digital Inputs | 24 inputs (24 V DC, positive logic) grouped into 3 isolated banks (8 inputs each) |
| Digital Outputs | 16 transistor outputs (24 V DC, 0.5 A per channel) in 2 isolated groups |
| Digital I/O | 8 configurable inputs/outputs (individually programmable as input or output) |
| Analog Inputs | 8 configurable channels: • Voltage: 0–10 V, ±10 V, 0–5 V, ±5 V • Current: 0–20 mA, 4–20 mA • Pt100 (2/3-wire) |
| Analog Outputs | 4 configurable channels: • Voltage: ±10 V • Current: 0–20 mA, 4–20 mA |
| High-Speed Counter | 2 counters with 50 kHz max frequency, 7 operating modes |
| Memory | • 240 kB user program • 120 kB user data • Flash EPROM + SmartMedia Card (07 MC 90, up to 2 MB) |
| Communication | • COM1: EIA-232 (programming/MMC) • COM2: MODBUS (master/slave) • CS31 System Bus: RS-485 • ARCNET (R161/R261 models only) |
| Dimensions | 240 mm (W) × 140 mm (H) × 85 mm (D) |
| Weight | 1.6 kg |
| Mounting | DIN rail (EN 50022-35) or screw mounting (4×M4) |
| Environmental | • Operating temperature: 0–55°C • Pollution severity: 2 (IEC 60664-1) |
| Certifications | Complies with DIN VDE 0100, 0110, 0160, IEC 1131-2, EN 60204-1 |
3. Key Features
- Modular I/O Configuration:
- 24 digital inputs with configurable signal delay (1 ms or 7 ms).
- 16 digital outputs with short-circuit/overload protection and auto-recovery.
- 8 flexible digital I/Os for dynamic reconfiguration.
- 8 analog inputs support voltage, current, and RTD (Pt100) signals.
- 4 analog outputs with ±10 V or 4–20 mA ranges.
- High-Speed Processing:
- Dual 50 kHz counters for precision timing and frequency measurement.
- Real-time clock with battery backup for time-stamped operations.
- Robust Communication:
- Dual serial ports (COM1/COM2) for programming, MODBUS, or MMC devices.
- CS31 system bus supports up to 31 remote modules (744 DI, 496 DO, 96 AI, 48 AO).
- ARCNET interface (R161/R261 models) for high-speed industrial networking.
- Diagnostics & Safety:
- LED indicators for power, errors (FK1-FK3), bus status, and I/O activity.
- Self-diagnostics with error flags (overload, short-circuit, bus faults).
- Lithium battery (07 LE 90) for RAM backup during power loss.
- Expandability:
- SmartMedia Card slot for firmware updates, data logging, or program storage.
- Interface for communication modules (e.g., 07 KP 90) to extend network capabilities.
4. Typical Applications
- Industrial Automation: Control of production lines, robotic systems, and packaging machinery.
- Process Control: Monitoring and regulation of temperature, pressure, and flow in chemical plants.
- Energy Management: Integration with SCADA systems for power distribution networks.
- Machinery Safety: Emergency stop circuits, interlock systems, and fault-tolerant operations.
- Data Acquisition: High-speed counting for encoder signals or pulse measurement.
ABB 07KT94 GJR5252100R0161 is in stock. Contact us for quick quotes and competitive prices.
