ABB 07KT94 GJR5252100R0101 Advant Controller Consulting Price
1. Product Overview

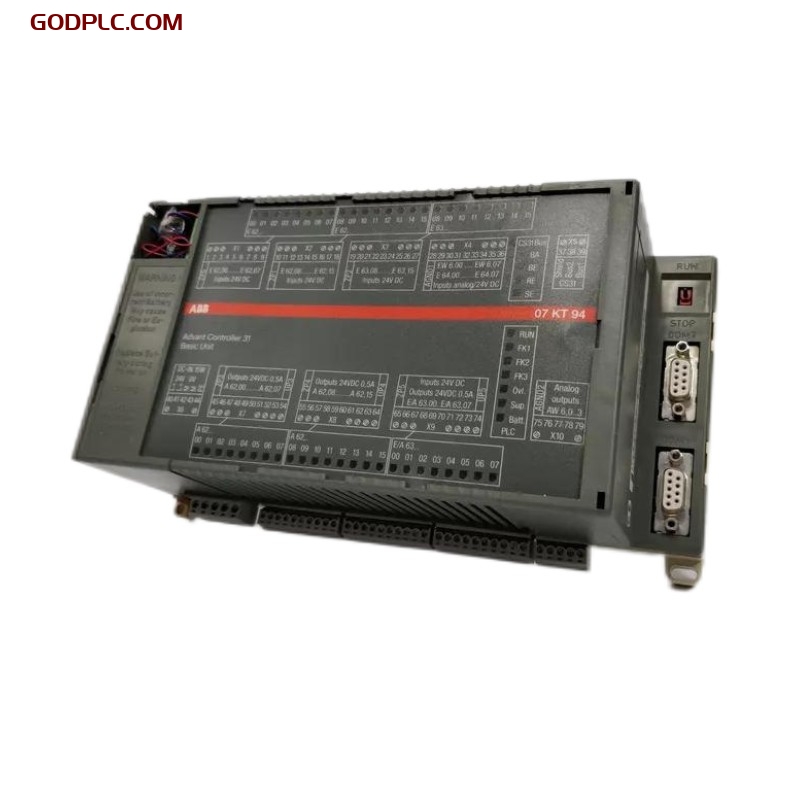

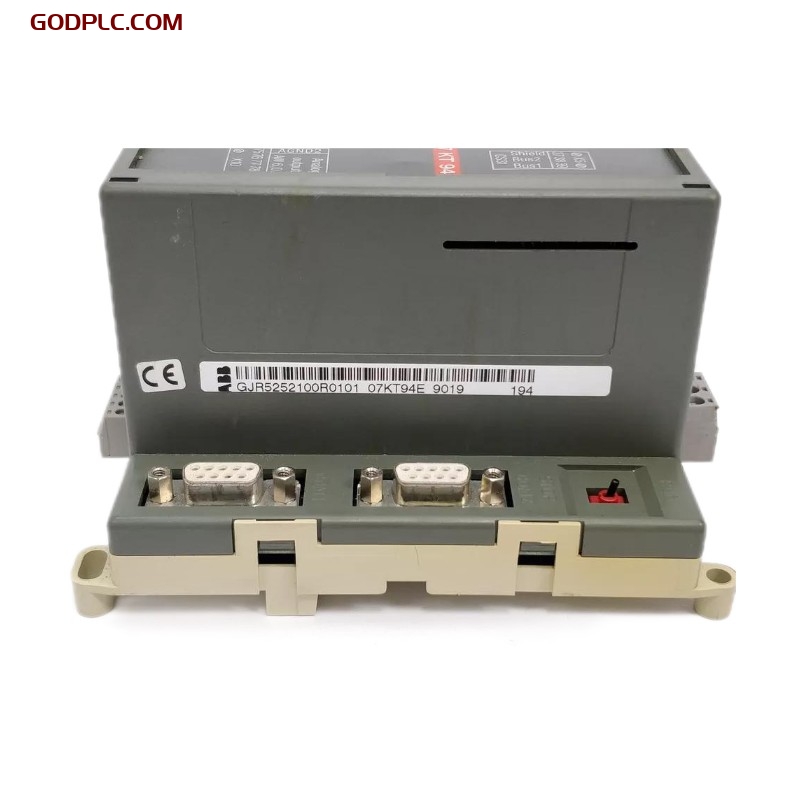

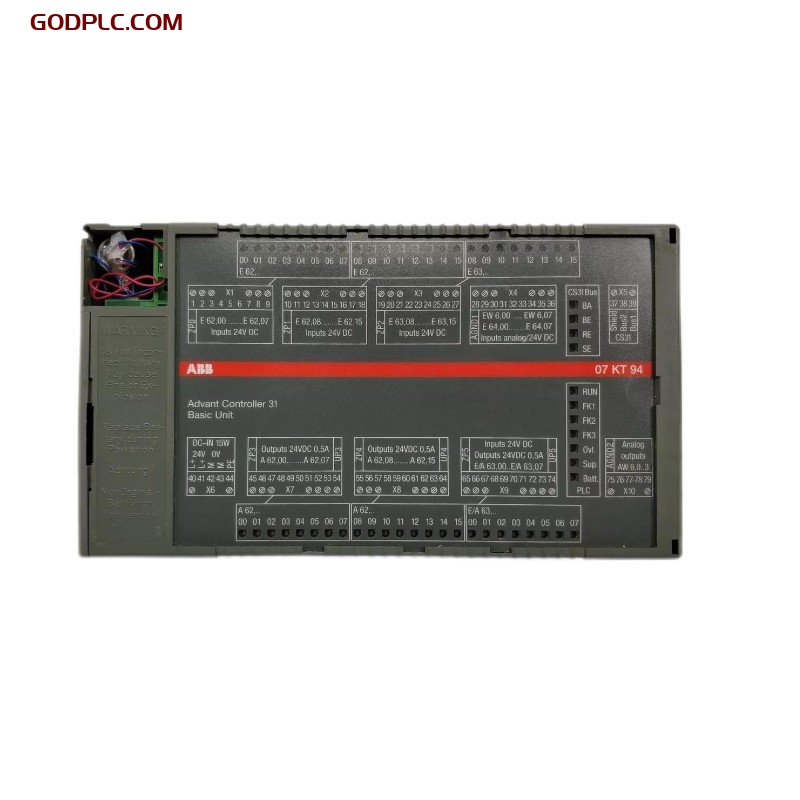

The ABB 07KT94 GJR5252100R0101 is a high-performance control unit from the Advant Controller 31 series, designed for distributed automation systems. This controller can operate as a standalone unit, a bus master on the CS31 system bus, or as a remote processor. Compliant with IEC 61131-2 standards, it features high reliability, scalability, and extensive communication capabilities, making it ideal for a variety of industrial automation applications.
2. Key Features
- Modular design allows flexible I/O expansion to accommodate diverse industrial control requirements.
- Built-in Flash EPROM and RAM enable user program storage and support for online modifications.
- Supports high-speed counting (up to 10kHz) for processing rapid input signals.
- CS31 system bus communication allows connectivity with up to 31 remote I/O modules for large-scale system control.
- MODBUS communication support via the COM2 serial interface for remote connectivity.
- Integrated LED indicators provide real-time monitoring of input/output statuses, system conditions, and error diagnostics.
- DIN rail mounting design facilitates easy installation and maintenance, supporting vertical placement for efficient cooling.
- Rugged and durable construction, designed for harsh industrial environments and compliant with DIN VDE 0110 overvoltage category II standards.
3. Technical Specifications
3.1 Physical Dimensions & Mechanical Data
| Parameter | Specification |
|---|---|
| Dimensions (W × H × D) | 240 × 140 × 85 mm |
| Weight | 1.6 kg |
| Mounting Method | DIN rail (DIN EN 50022-35, 15 mm) or screw mounting |
| Terminal Connections | Removable screw-type terminals, supports up to 2.5 mm² wiring |
3.2 General Information
| Parameter | Specification |
|---|---|
| I/O Expansion Capacity | Up to 744 digital inputs, 496 digital outputs, 96 analog inputs, 48 analog outputs |
| Memory | 32KB Flash EPROM, 256KB RAM (supports online modification) |
| Clock Accuracy | 1 second |
| Diagnostic Functions | Battery monitoring, cycle time monitoring, syntax error detection, checksum verification |
| LED Indicators | 42 LEDs (input/output states, system operation, error conditions, communication status, etc.) |
3.3 Power Supply Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC |
| Power Consumption | Max. 20W |
| Reverse Polarity Protection | Yes |
3.4 Digital Inputs
| Parameter | Specification |
|---|---|
| Number of Channels | 20 |
| Logic Levels | 0 = -30V to +5V, 1 = +13V to +30V |
| Input Delay | 7ms (standard input), 0.02ms (high-speed input) |
| Max. Cable Length | 600m (unshielded), 1000m (shielded) |
3.5 Digital Outputs
| Parameter | Specification |
|---|---|
| Number of Channels | 12 relay outputs |
| Load Capacity | Max. 2A (230V AC), Max. 2A (24V DC) |
| Relay Lifetime | Mechanical: 40 million operations, Electrical: 400,000 operations (230V AC, 2A) |
| Protection | Built-in varistor for AC loads, freewheeling diode required for DC loads |
3.6 Communication Interfaces
| Interface | Description |
|---|---|
| Serial Interface COM1 | RS-232, for programming or human-machine interaction |
| Serial Interface COM2 | Supports MODBUS protocol |
| CS31 Bus | RS-485, supports up to 31 remote modules |
3.7 High-Speed Counter
| Parameter | Specification |
|---|---|
| Counting Range | -32768 to +32767 (16-bit) |
| Max. Counting Frequency | 10kHz |
| Counting Input Channels | E62.00 (high-speed input), E62.01 (enable input) |
| Zero-Crossing Signal Output | A62.00 |
4. Industrial Applications
The ABB 07KT94 GJR5252100R0101 is widely used in various industrial automation scenarios, particularly where high reliability and scalability are required, such as:
- Manufacturing Automation: Used for PLC control in production lines, process monitoring, and equipment coordination.
- Power Industry: Suitable for substation automation and power distribution system control.
- Oil & Gas: Applied in pipeline monitoring, valve control, and flow measurement.
- Water Treatment Systems: Used in pump station control, wastewater treatment, and flow/pressure monitoring.
- Building Automation: Ideal for HVAC (heating, ventilation, and air conditioning) control, lighting management, and energy monitoring.
- Traffic Control: Applied in railway signaling, tunnel monitoring, and automated toll systems.
ABB 07KT94 GJR5252100R0101 is in stock. Contact us for quick quotes and competitive prices.
