ABB 07DI92 GJR5252400R0101 Digital I/O module Cheap&Stock
1. Product Overview

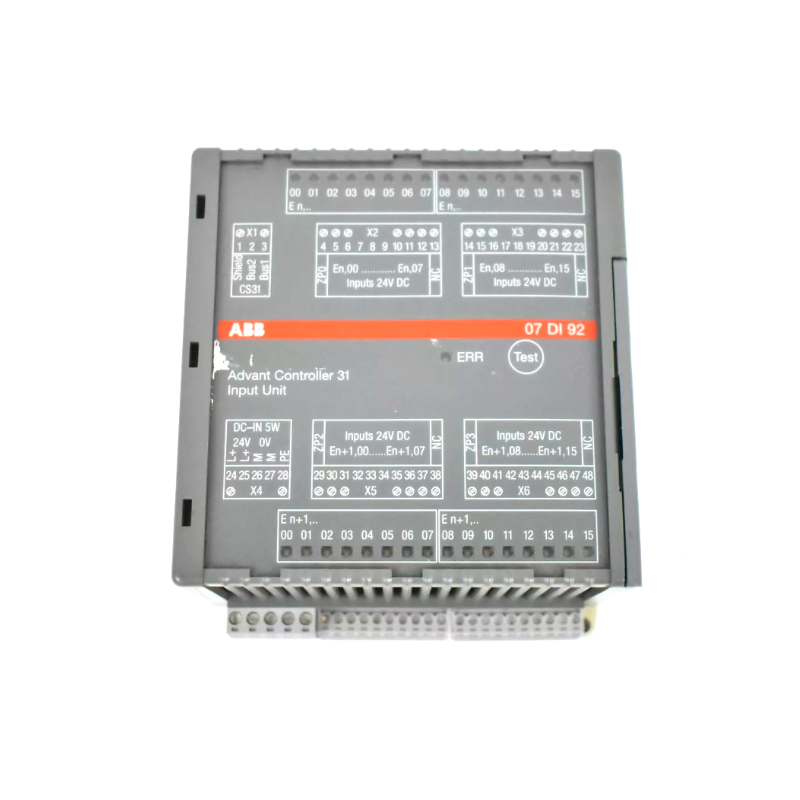

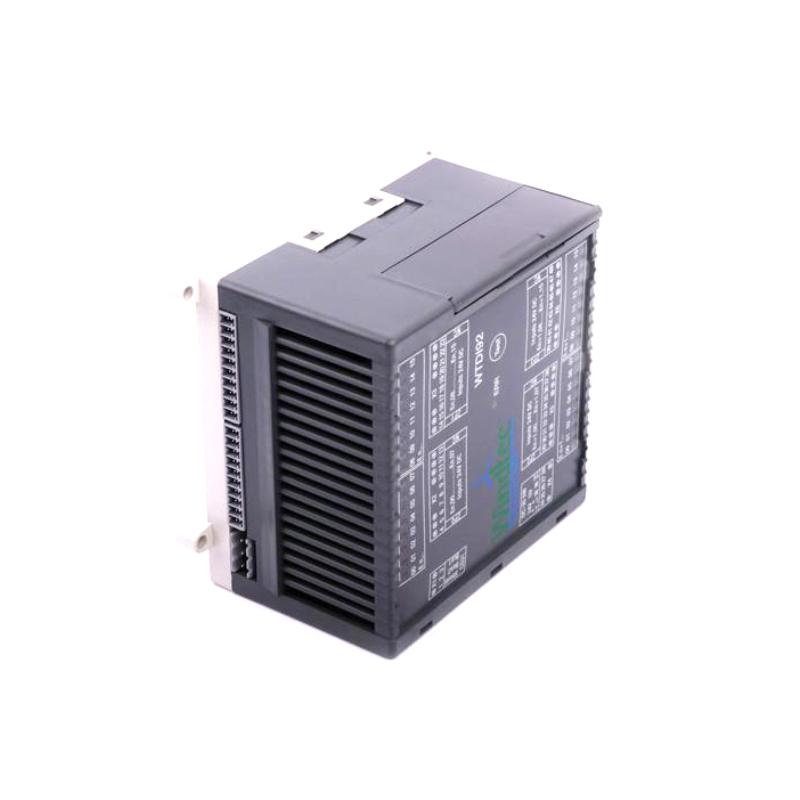

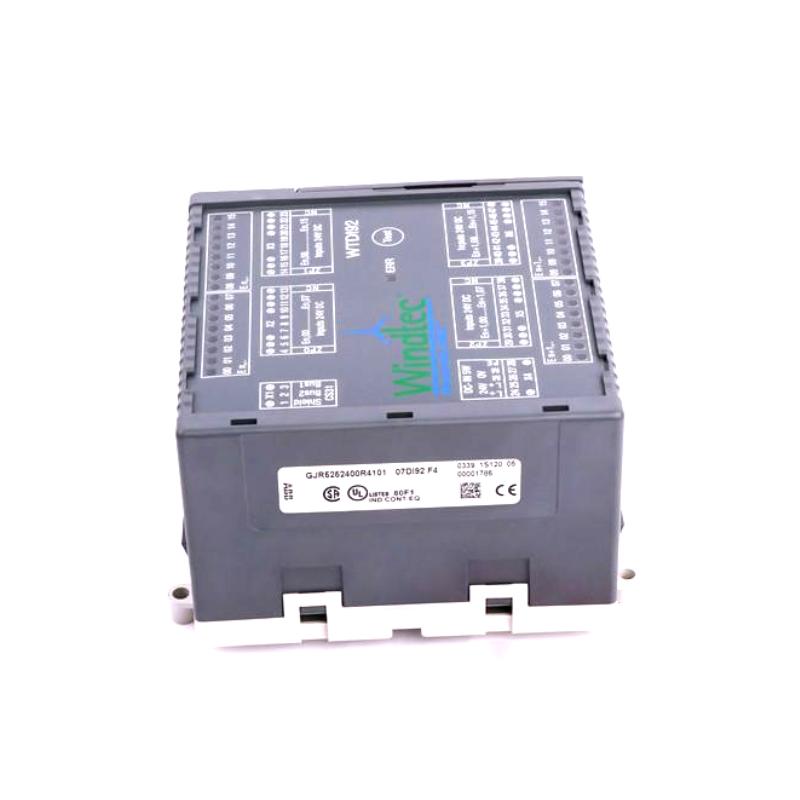

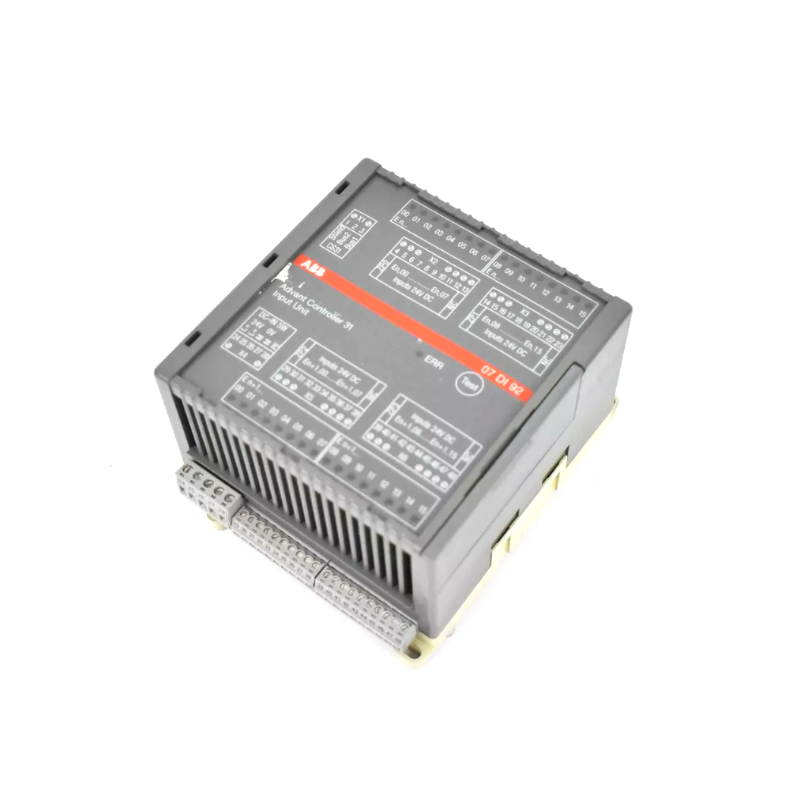

The ABB 07DI92 GJR5252400R0101 is a high-performance digital input module designed for use with the AC31 series PLC. It features 32 digital input channels and supports a 24V DC power supply, making it suitable for various industrial automation applications where accurate digital signal acquisition is required. This module ensures reliable performance in harsh environments and can be easily integrated into control systems for seamless operation.
With screw terminal connections and a plug-in design, the 07DI92 module allows for quick and easy installation and maintenance. Its compact size and robust structure ensure it operates reliably in industrial settings, such as process control, production line monitoring, and other applications where real-time signal monitoring is essential.
2. Technical Specifications
General Specifications
| Category | Specifications |
|---|---|
| Order Code | GJR5252400R0101 |
| Supply Voltage | 24V DC |
| Number of Input Channels | 32 Digital Inputs |
| Input Type | 24V DC, 1-wire input |
| Connection Type | Screw terminals, Plug-in design |
| Product Type | PLC-AC31-90 |
| Series | 07DI92 |
| Depth (Net Size) | 85mm |
| Height (Net Size) | 140mm |
| Width (Net Size) | 120mm |
| Net Weight | 0.59kg |
| Max Current Consumption | 0.3A |
| Max Power Dissipation | 7W |
| Operating Temperature Range | 0°C to 55°C |
| Protection | Reverse polarity protection |
| Mounting | DIN rail installation |
Other Specifications
| Parameter | Specifications |
|---|---|
| Nominal Voltage | 24V |
| Depth (Including Packaging) | 85mm |
| Diagnostic Features | Built-in self-diagnosis and error display |
| Max Cable Length | 100m (shielded two-core cable, >0.5mm² cross-section) |
| Cable Connection | Removable screw terminals |
| Installation Dimensions | Ensure adequate space during installation, refer to installation diagrams |
3. Key Features
- High-Density Input Design: 32 digital input channels, suitable for high-density signal acquisition.
- Easy Wiring: Screw terminal connections with a plug-in design for easy installation and maintenance.
- High Reliability: 24V DC input with reverse polarity protection ensures safe operation even in case of incorrect wiring.
- Flexible Installation: Can be mounted on a DIN rail, adaptable to various industrial control systems.
- Compact Design: With dimensions of 120 x 140 x 85mm, it fits into tight spaces for efficient deployment.
- Diagnostic Features: Built-in diagnostic LEDs for real-time error detection and maintenance.
- Wide Operating Temperature Range: Stable performance in temperatures ranging from 0°C to 55°C, suitable for various industrial environments.
4. Applications
The ABB 07DI92 GJR5252400R0101 is widely used in industrial applications, including:
- Process Automation: Collecting digital signals from machinery, production lines, and other sources in industries such as chemicals, pharmaceuticals, and food processing.
- Smart Manufacturing: Integrated into automated production lines for monitoring machine and sensor signals, ensuring optimal production processes.
- Equipment Monitoring: Real-time monitoring of equipment on/off states to ensure reliability and safety.
- Environmental Control: Used in HVAC systems for controlling temperature, humidity, and airflow based on digital signals.
- Power Monitoring and Control: In substations and power facilities, for monitoring digital signals to manage electrical equipment.
