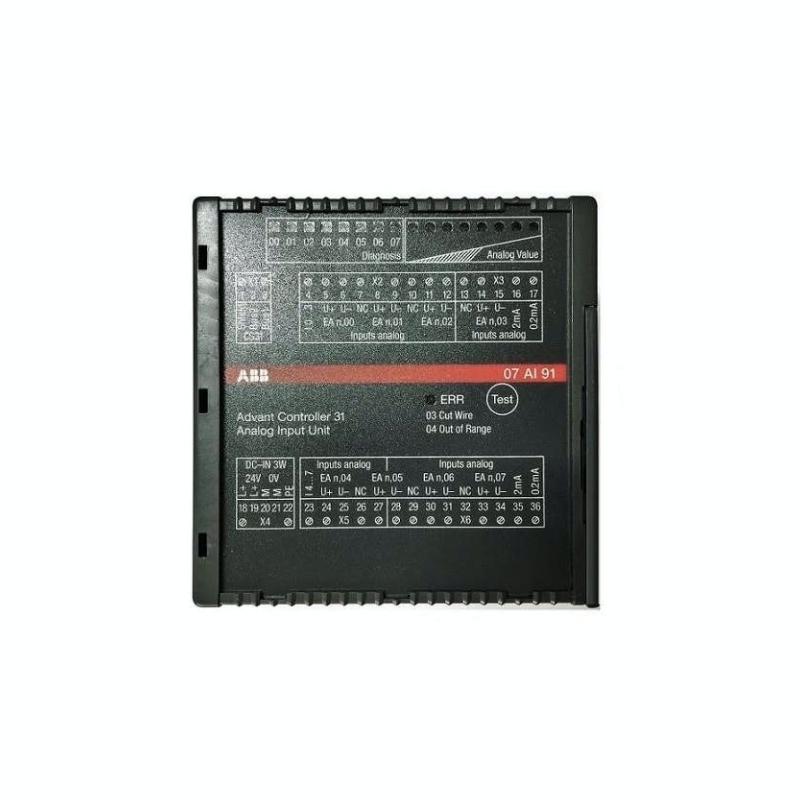

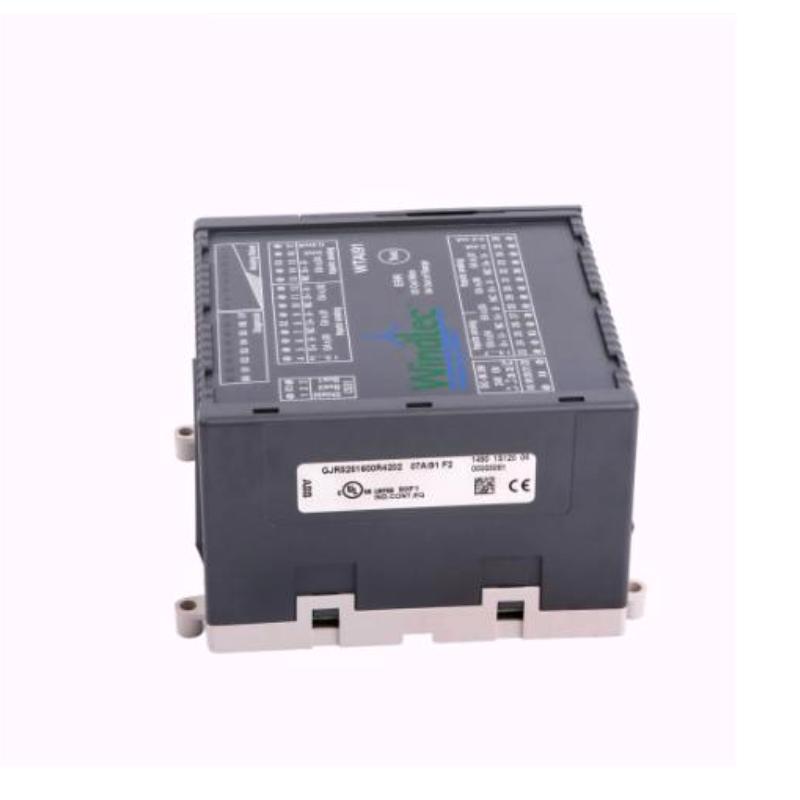

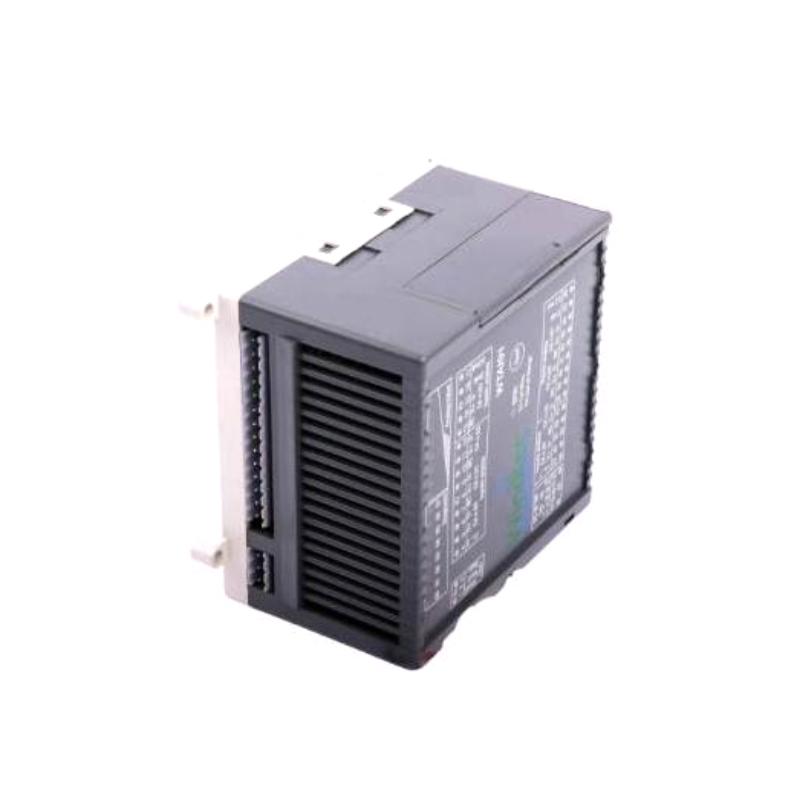

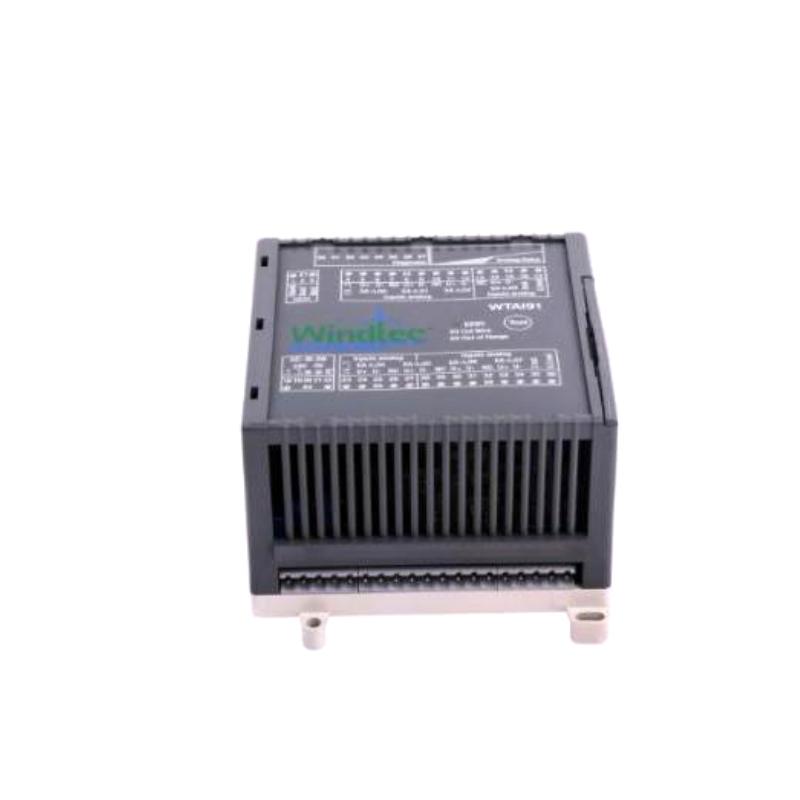

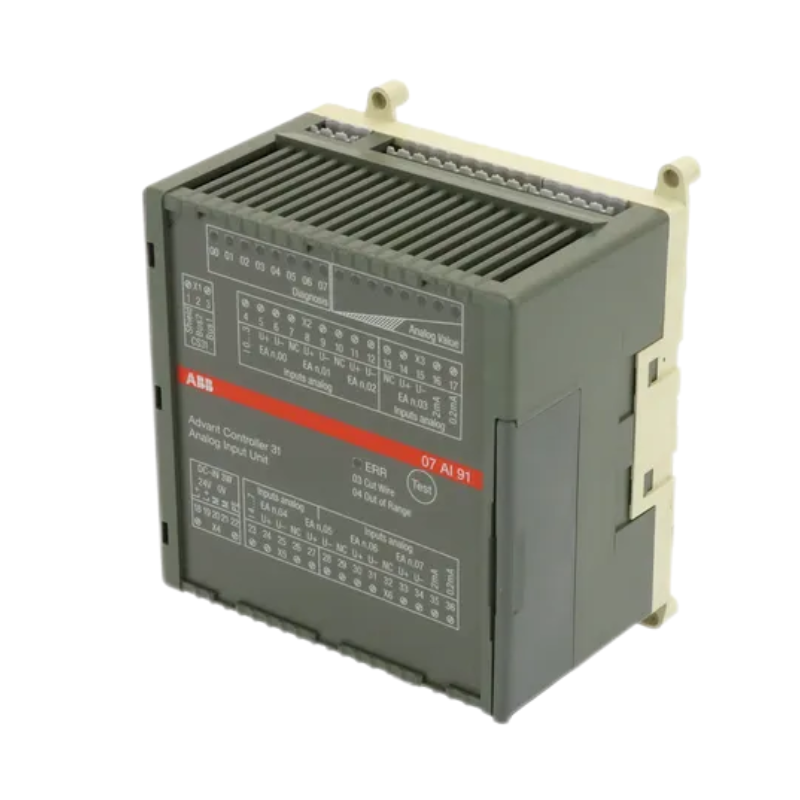

ABB 07AI91 GJR5251600R0202 Analog Input Module Immediate Quote
1. Product Overview
The 07AI91 GJR5251600R0202 is a high-performance analog input module designed for industrial automation systems. It provides reliable and accurate data acquisition for various industrial applications. With its robust design, flexible configuration options, and compatibility with the CS31 system bus, this module is an ideal choice for demanding automation environments.
The module is capable of handling multiple voltage and current input signals, making it suitable for diverse industrial settings. It is designed to operate in harsh conditions while ensuring precise data collection for optimal process control.
2. Technical Specifications
General Specifications
| Category | Specifications |
|---|---|
| Order Code | GJR5251600R0202 |
| Supply Voltage | 24V DC |
| Max Current Consumption | 0.2A |
| Max Power Dissipation | 5W |
| Protection | Reverse Polarity Protection |
| Interface | CS31 System Bus |
| Diagnostic Features | Self-diagnosis and error indication |
| Connection Type | Removable screw terminals |
| Cable Length | 100m (shielded two-core cable, >0.5mm² cross-section) |
Analog Input
| Parameter | Specifications |
|---|---|
| Number of Channels | 8 or 16 (depending on operating mode) |
| Operating Modes | “12-bit mode”: 8 input channels, ±10V or 0-20mA, 12-bit resolution “8-bit mode”: 16 channels (paired configuration as input or output), 0-10V or 0-20mA, 8-bit resolution |
| Input Resistance | Voltage input: >100kΩ Current input: ≈ 330Ω |
| Input Filter Time | Voltage: 470µs Current: 100µs |
| Resolution | 12-bit mode: ±10V (5mV resolution), 0-20mA (5µA resolution) 8-bit mode: 0-10V (40mV resolution), 0-20mA (80µA resolution) |
| Max Allowable Voltage/Current | ±10V / 0-20mA |
Physical Characteristics
| Parameter | Specifications |
|---|---|
| Dimensions | 120 × 140 × 85 mm |
| Mounting | DIN rail (DIN EN 50022-35) or screw mounting |
| Operating Temperature | 0 to 55°C |
| Weight | 450g |
3. Key Features
- High-Precision Analog Input: Supports 12-bit or 8-bit resolution for precise data acquisition.
- Multiple Signal Compatibility: Configurable for ±10V, 0-10V, and 0-20mA inputs to accommodate various sensors.
- Flexible Configuration: DIL switch allows easy channel mode configuration with diverse input-output combinations.
- Electrical Isolation: The CS31 bus interface is electrically isolated from other module components for better system stability.
- Reliable Performance: Integrated diagnostics for error detection and LED indicators for easy maintenance.
- Durable Industrial Design: Built for harsh environments, ensuring long-term stability and performance.
4. Applications
ABB 07AI91 GJR5251600R0202 is widely used in industrial automation applications, including:
- Process Control Systems: Collecting analog signals such as temperature, pressure, level, and flow for precise control.
- Manufacturing Automation: Integrated into PLC systems for monitoring and controlling production equipment.
- Energy Industry: Used in power plants and substations to collect current and voltage data.
- Chemical & Pharmaceutical Industry: Monitoring critical variables in chemical reactions to ensure safety.
- Water Treatment Systems: Measuring pH, conductivity, and other water quality parameters for process optimization.
ABB 07AI91 GJR5251600R0202 is in stock. Contact us for quick quotes and competitive prices.
