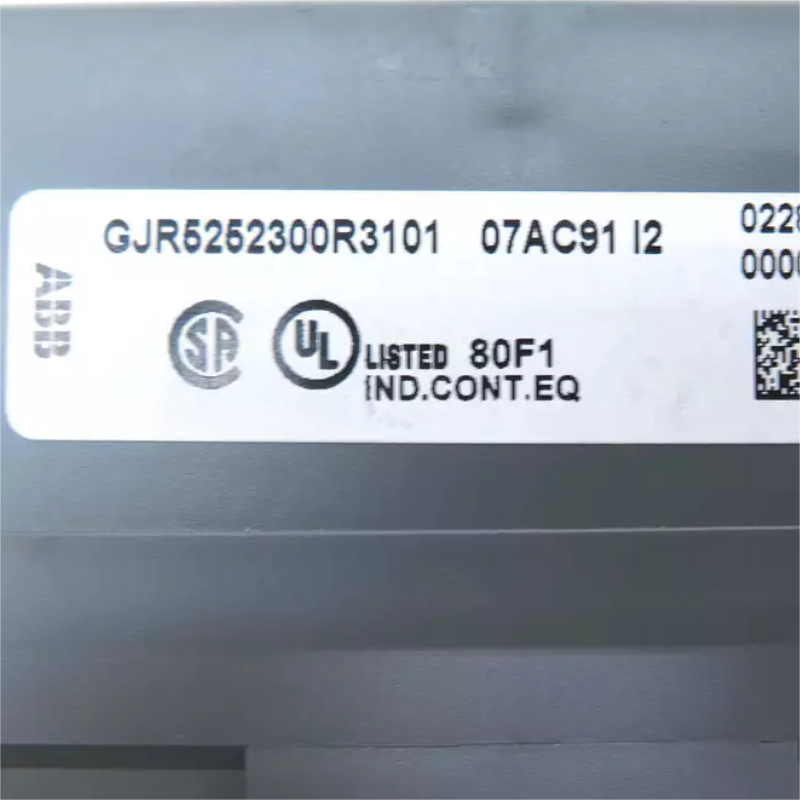

ABB 07AC91 GJR5252300R3101 Analog Input/Output Module Consulting Price
Product Overview

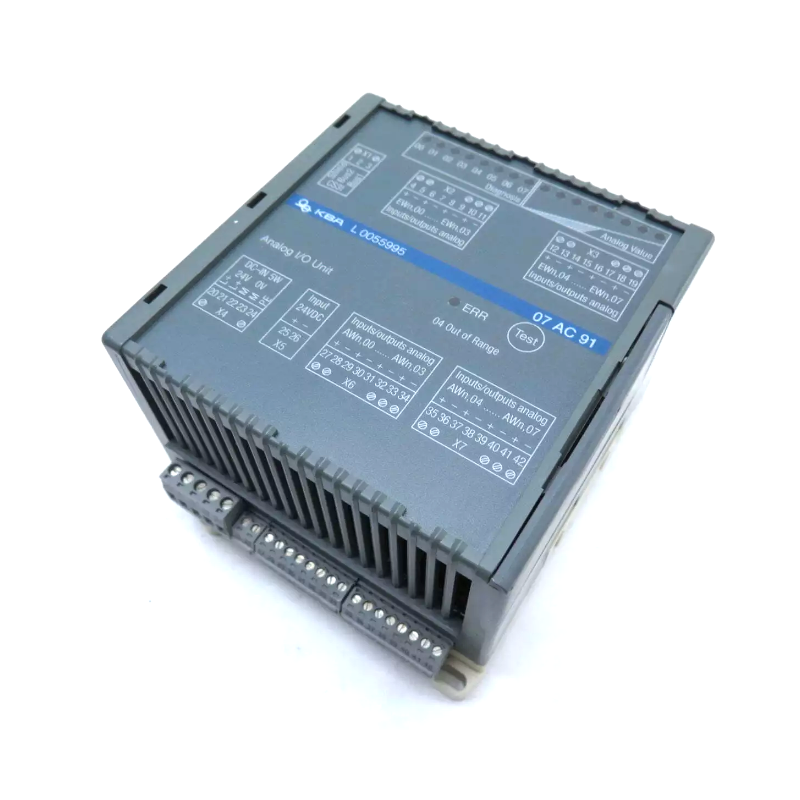

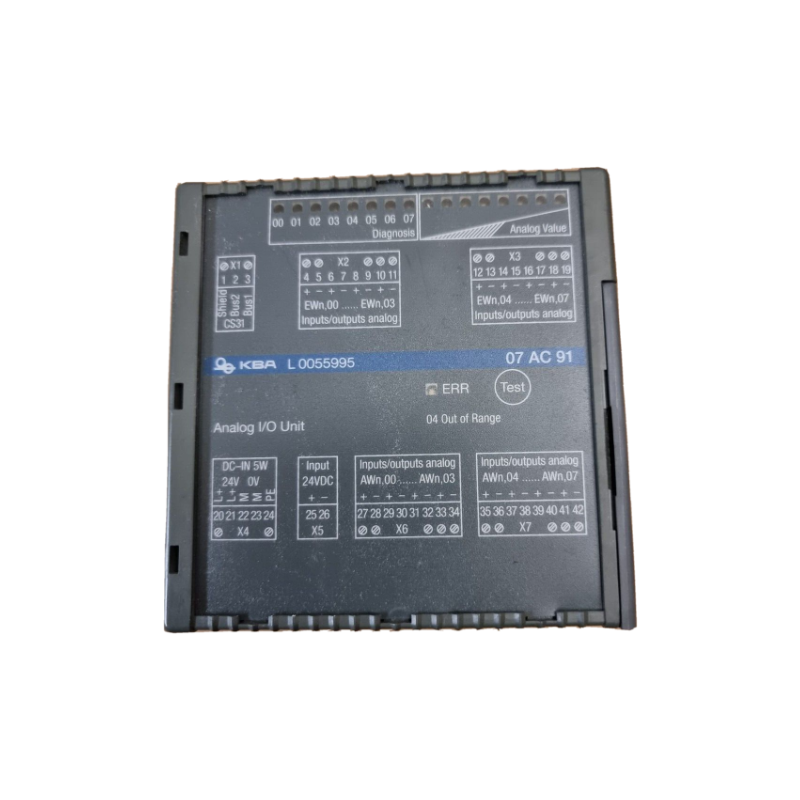

The ABB 07AC91 GJR5252300R3101 is a high-performance analog I/O module designed for industrial automation systems. It communicates via the CS31 system bus and provides 16 configurable channels (inputs or outputs) with two operating modes (12-bit or 8-bit resolution). Key features include precise signal acquisition, robust diagnostics, and flexible configuration, making it ideal for demanding industrial environments.
Technical Specifications
1. General Parameters
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 V DC (±15%) |
| Max. Current Consumption | 0.2 A |
| Power Dissipation | ≤5 W |
| Operating Temperature | 0°C to +55°C |
| Reverse Polarity Protection | Yes |
| Electrical Isolation | CS31 bus isolated from analog circuits |
| Dimensions (W×H×D) | 120 mm × 140 mm × 85 mm |
| Weight | 450 g |

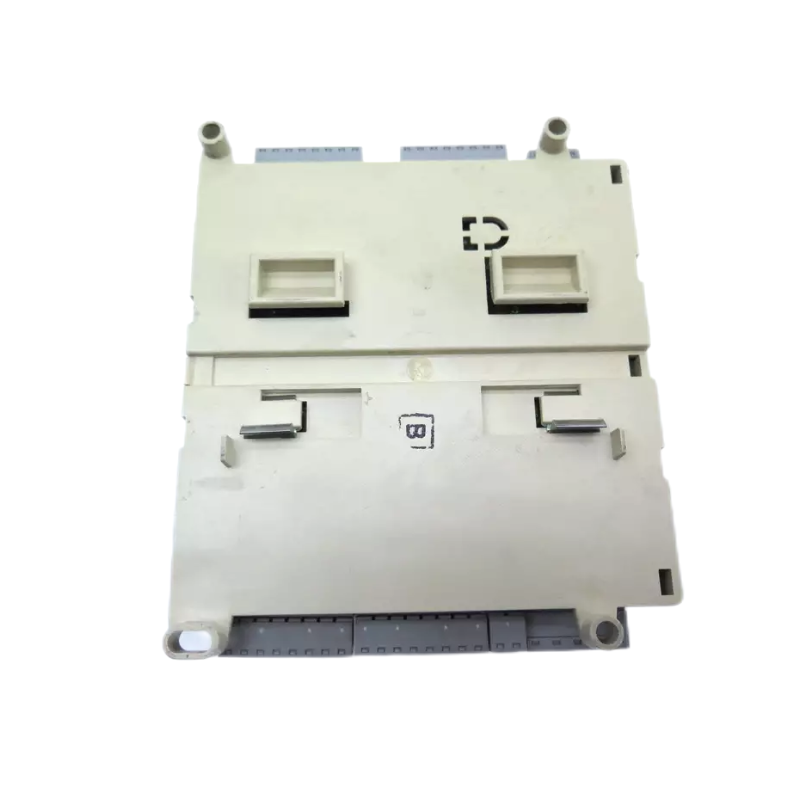

| Mounting | DIN rail (EN 50022-35) or 4×M4 screws |
2. Analog Inputs
| Parameter | 12-bit Mode | 8-bit Mode |
|---|---|---|
| Channels | 8 independent inputs | 16 channels (paired) |
| Signal Ranges | ±10 V, 0–20 mA | 0–10 V, 0–20 mA |
| Resolution | 12-bit (5 mV/5 μA) | 8-bit (40 mV/80 μA) |
| Input Impedance | >100 kΩ (voltage), 330 Ω (current) | Same as 12-bit mode |
| Conversion Cycle | 8 ms (8 inputs + 8 outputs) | 8 ms (16 channels) |
3. Analog Outputs
| Parameter | 12-bit Mode | 8-bit Mode |
|---|---|---|
| Channels | 8 independent outputs | 16 channels (paired) |
| Signal Ranges | ±10 V, 0–20 mA | 0–10 V, 0–20 mA |
| Resolution | 12-bit (5 mV/5 μA) | 8-bit (40 mV/80 μA) |
| Load Capacity | ±10 V: ±20 mA (source/sink) | Same as 12-bit mode |
| Output Enable | 24 V signal required (terminals 25/26) | Same as 12-bit mode |
4. Communication & Addressing
| Parameter | Specification |
|---|---|
| System Bus | CS31 (RS-485 compliant) |
| Address Range | 00–15 (set via 8-bit DIL switches) |
| Data Packing | 8-bit mode: 2 channels per word (low/high byte) |
Key Features
- Dual Operating Modes: 12-bit precision (8 inputs + 8 outputs) or 8-bit economy mode (16 paired channels).
- Flexible Configuration: Set module address and channel parameters (voltage/current, input/output) via DIL switches.
- Diagnostics:
- 17 LEDs (8 channel status, 8 diagnostic indicators, 1 error alarm).
- Overrange detection, initialization errors, and bus communication faults.
- High Reliability:
- Electrical isolation between analog circuits and CS31 bus.
- Supports shielded cables (max. 100 m, cross-section ≥0.5 mm²).
- Easy Installation: Removable screw terminals, DIN rail or screw mounting.
Applications
- Process Control: Real-time acquisition and control of temperature, pressure, or flow signals.
- Industrial Automation: Integration with PLCs for motor speed regulation or valve positioning.
- Distributed Control: Modular networks via CS31 bus for large-scale production lines.
- Safety Monitoring: Trigger alarms based on signal anomalies using diagnostic functions.
ABB 07AC91 GJR5252300R3101 is in stock. Contact us for quick quotes and competitive prices.
