ABB 07AC91 GJR5252300R0101 Analog Input/Output Module Fast Delivery

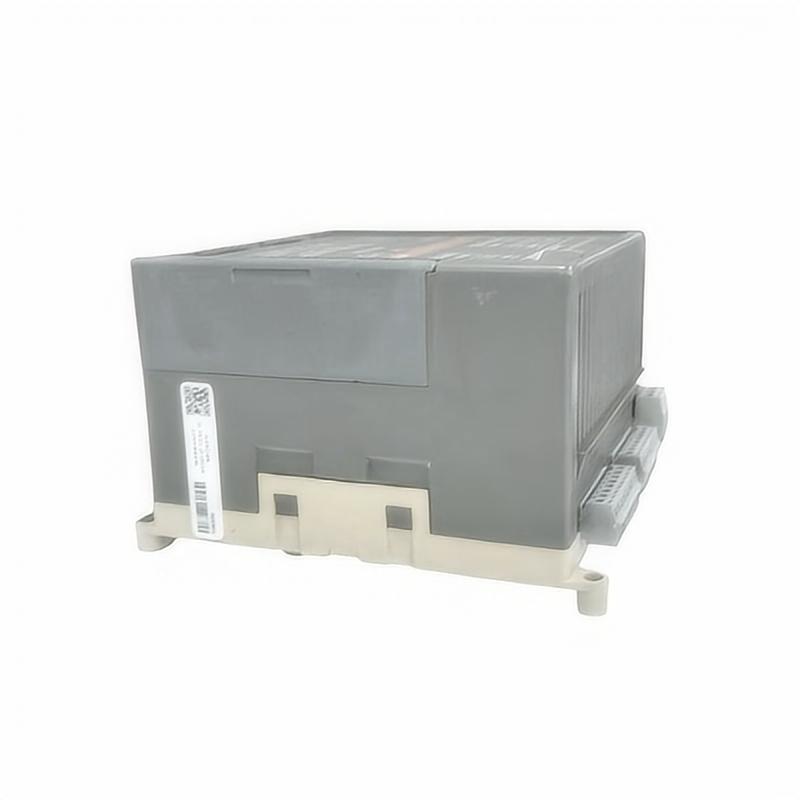

Product Overview

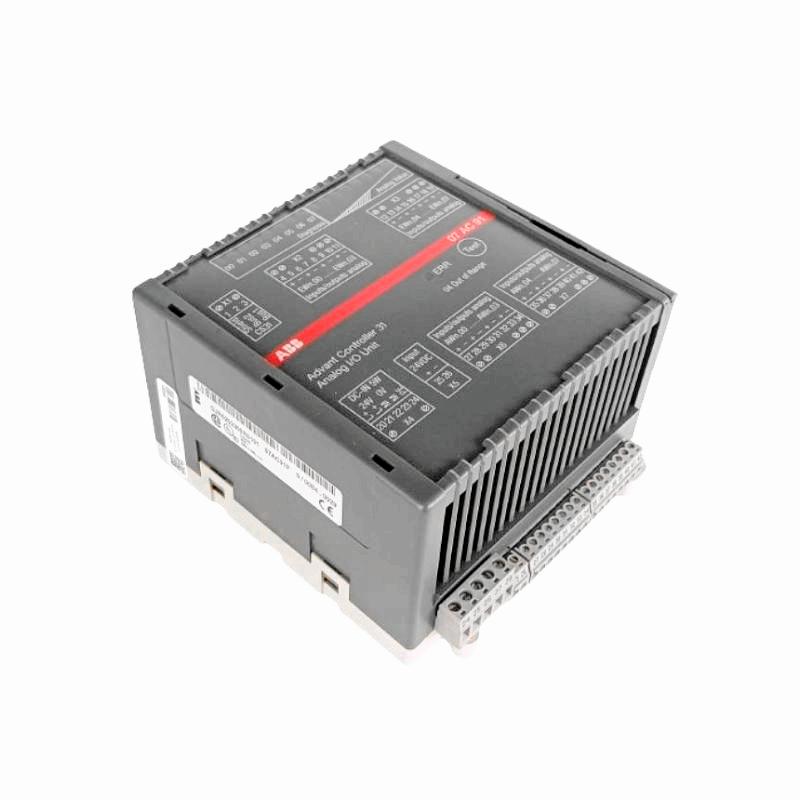

The ABB 07AC91 GJR5252300R0101 is a versatile analog input/output (I/O) module designed for integration into industrial control systems via the CS31 system bus. It provides flexible configuration options for both analog inputs and outputs, supporting multiple signal ranges and resolutions. The module is ideal for applications requiring precise analog signal acquisition and output control in automation environments.
Key Features
- 16 configurable channels: Supports ±10 V, 0–10 V, or 0–20 mA signals.
- Two operating modes:
- 12-bit mode: 8 individual input channels + 8 individual output channels.
- 8-bit mode: 16 channels configurable in pairs (input/output).
- Diagnostic capabilities: LED indicators for error detection, channel status, and analog value display.
- Electrical isolation: CS31 bus and enabling input are isolated from the analog circuitry.
- DIL switch configuration: Module address and channel parameters set via DIP switches.
- Robust design: DIN rail or screw mounting, wide operating temperature range.
Technical Specifications
1. General Parameters
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 V DC (±15%) |
| Current Consumption | Max. 0.2 A |
| Power Dissipation | Max. 5 W |
| Operating Temperature | 0°C to +55°C |
| Protection | Reverse polarity protection |
| Electrical Isolation | CS31 bus and enabling input isolated |
| Weight | 450 g |
| Dimensions (W x H x D) | 120 x 140 x 85 mm |
| Mounting | DIN rail (EN 50022-35) or 4x M4 screws |
2. Analog Inputs
| Parameter | 12-bit Mode | 8-bit Mode |
|---|---|---|
| Channels | 8 | 16 (configurable in pairs) |
| Signal Ranges | ±10 V, 0–20 mA (per channel) | 0–10 V, 0–20 mA (per pair) |
| Resolution | 12-bit (5 mV/5 µA) | 8-bit (40 mV/80 µA) |
| Input Resistance | >100 kΩ (voltage), 330 Ω (current) | >100 kΩ (voltage), 330 Ω (current) |
| Conversion Cycle | 8 ms (8 inputs + 8 outputs) | 8 ms (16 channels) |
| Non-linearity Error | Typ. 0.5%, Max. 1% | Typ. 0.5%, Max. 1% |
3. Analog Outputs
| Parameter | 12-bit Mode | 8-bit Mode |
|---|---|---|
| Channels | 8 | 16 (configurable in pairs) |
| Signal Ranges | ±10 V, 0–20 mA (per channel) | 0–10 V, 0–20 mA (per pair) |
| Resolution | 12-bit (5 mV/5 µA) | 8-bit (40 mV/80 µA) |
| Load Capacity | ±10 V: ±20 mA (source/sink) | ±10 V: ±20 mA (source/sink) |
| Output Enable | 24 V signal required (terminals 25/26) | 24 V signal required (terminals 25/26) |
4. Communication & Addressing
| Parameter | Specification |
|---|---|
| System Bus | CS31 (RS-485 compliant) |
| Address Range | 00–15 (set via 8-bit DIL switch) |
| Bus Isolation | Yes (galvanic isolation) |
| Data Packing | 8-bit mode: 2 channels per word (low/high byte) |

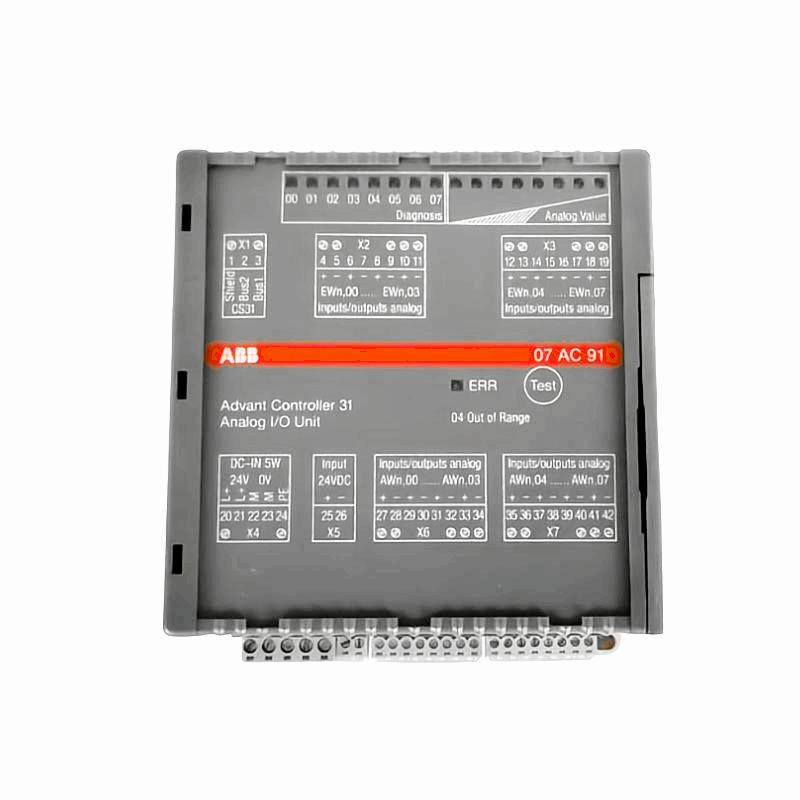

Diagnostics & Indicators
- 17 LEDs:
- 8 green LEDs for channel selection and analog value display.
- 8 green LEDs for diagnosis status.
- 1 red LED for error indication.
- Error Types: Out-of-range signals, initialization failures, bus communication errors.
- Diagnostic Functions:
- Channel-specific error logging.
- Manual channel selection via test button.
- LED test mode and address display.
Mechanical & Installation
| Parameter | Specification |
|---|---|

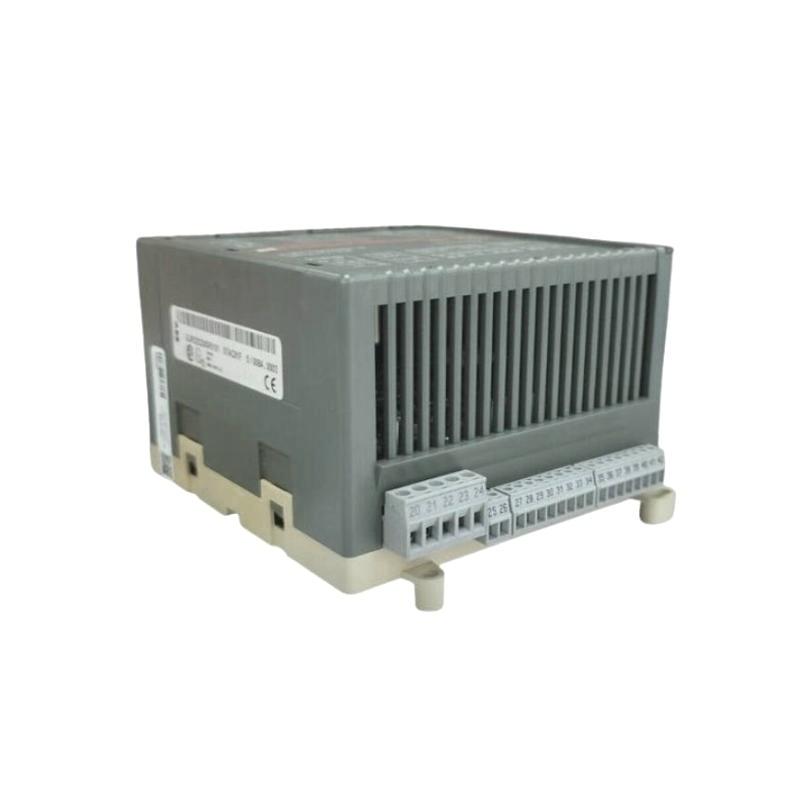

| Terminal Blocks | Removable screw terminals (max. 2.5 mm²) |
| Cable Length | Max. 100 m (shielded, ≥0.5 mm² cross-section) |
| Shielding | Cable shields connected to cabinet ground |
| Cooling | Natural convection (no obstruction allowed) |
Applications
- Process control systems requiring high-resolution analog I/O.
- Industrial automation with mixed voltage/current signal handling.Distributed control architectures using CS31 bus communication.
