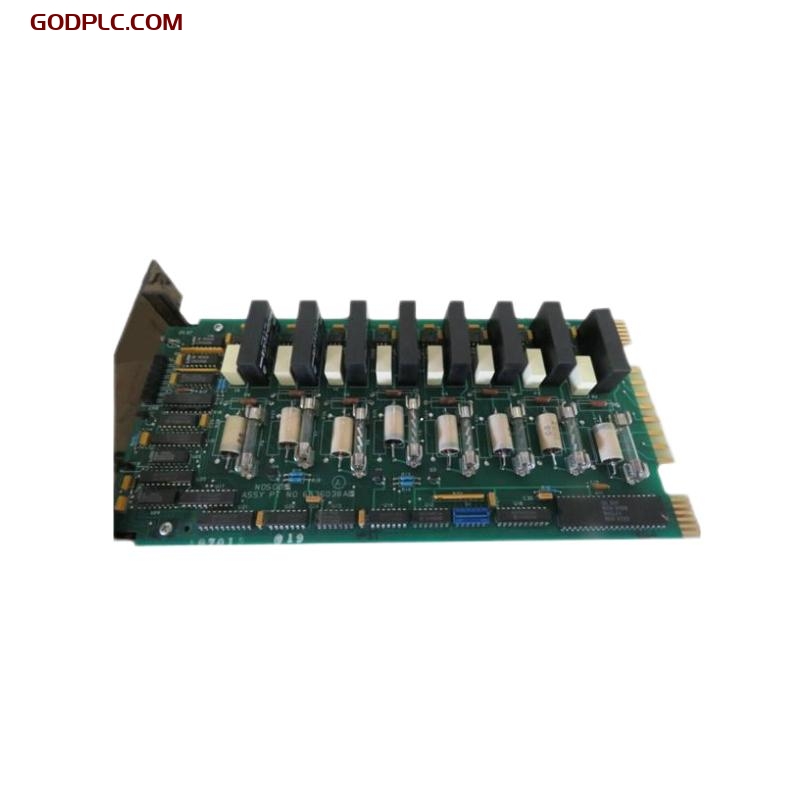

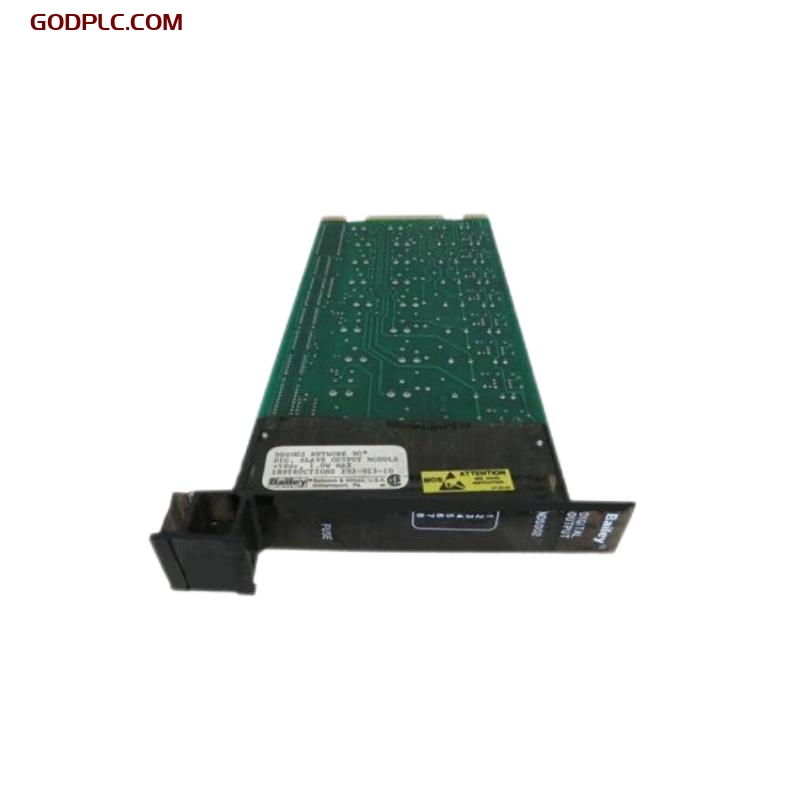

ABB Bailey NDSO02 Digital Output Module: Product Overview and Specifications

The ABB Bailey NDSO02 is a robust and versatile digital output module designed for industrial automation systems, specifically tailored for use within the ABB Bailey Network 90 (N90) control system. This module is primarily used to control digital devices in real-time, providing critical output signals for a variety of applications. It is part of ABB’s Bailey series of components, which are known for their durability, reliability, and ease of integration in industrial settings.

The NDSO02 module interfaces with a wide range of digital output devices such as actuators, relays, solenoids, and valves, allowing users to control these devices based on signals from the central control system. The module is designed to operate in a variety of industrial environments, ensuring continuous and reliable operation, even under harsh conditions.

Key Features:

• Precise Digital Output Control: The NDSO02 provides accurate and reliable control over digital output devices. It supports on/off control signals, which are ideal for a wide array of industrial applications such as controlling relays, actuators, and solenoids.
• Real-Time Communication: Integrated into the ABB Bailey N90 network, the module enables seamless real-time communication between the central control system and the connected field devices.
• High Durability: Designed for industrial use, the NDSO02 is built to withstand the harsh conditions commonly found in factories, power plants, and other industrial facilities. Its high durability ensures minimal downtime and continued operation in tough environments.
• Flexible Integration: The NDSO02 module can be easily integrated into existing ABB Bailey N90 control systems, providing scalable and adaptable solutions for both small and large systems.
• Modular Design: The module is modular, meaning it can be added or removed from the system without disrupting the entire configuration, providing ease of maintenance and flexibility for future system expansions.
• Built-in Diagnostics: The NDSO02 features diagnostic capabilities that allow for self-monitoring and detection of faults or malfunctions, ensuring proactive maintenance and preventing unnecessary downtime.
• Energy Efficient: The module is designed with energy efficiency in mind, consuming minimal power during operation and contributing to the overall energy savings of the automation system.
• Wide Temperature Range: The NDSO02 operates effectively in a wide range of temperatures, making it suitable for use in both standard and extreme environmental conditions.
• Compact and Space-Saving Design: The compact size of the module allows for installation in confined spaces, making it ideal for use in compact control panels and systems with limited space.

Applications:

The NDSO02 module is commonly used in applications that require precise control of digital output devices, such as:

• Manufacturing Automation: In manufacturing environments, the NDSO02 can be used to control machines, conveyors, and other automated systems. It helps ensure smooth operations and efficiency in production lines.
• Process Control: In industries such as chemicals, pharmaceuticals, and food processing, the module is used to control relays and solenoids that manage valves, pumps, and other critical processes.
• Power Generation: In power plants, the NDSO02 can be used to control digital devices that manage various functions, including safety systems and automation of electrical grid processes.
• Oil & Gas: The module is ideal for controlling actuators and valves in oil and gas pipelines, refineries, and drilling platforms, where precise and reliable digital output control is crucial.
• Building Automation: In large-scale building systems, the NDSO02 is used for controlling lighting, HVAC systems, and other facility management devices, contributing to energy efficiency and operational control.

Technical Specifications:

Additional Features:

• Real-Time Control: Provides real-time control of digital devices, ensuring that output signals are processed and executed promptly.
• Diagnostic Functions: Built-in diagnostics allow the module to monitor its health and status, making it easier to detect faults early and maintain system uptime.
• Space Efficiency: Its compact form factor makes it suitable for installation in control panels with limited space, allowing for efficient use of available area.
• Low Power Consumption: Designed to be energy-efficient, reducing operational costs while maintaining high performance.
• High Reliability: Engineered for long-term reliability in harsh environments, minimizing downtime and ensuring optimal system performance.
• Seamless Integration: Easy to integrate into existing ABB Bailey N90 control systems, ensuring minimal setup time and quick deployment.
• Wide Operating Range: The NDSO02 is capable of operating within a wide temperature range, making it versatile for use in varying environmental conditions.
• Flexible Control: With 16 independent outputs, the module offers versatile control for a wide range of digital devices, enhancing system flexibility.
