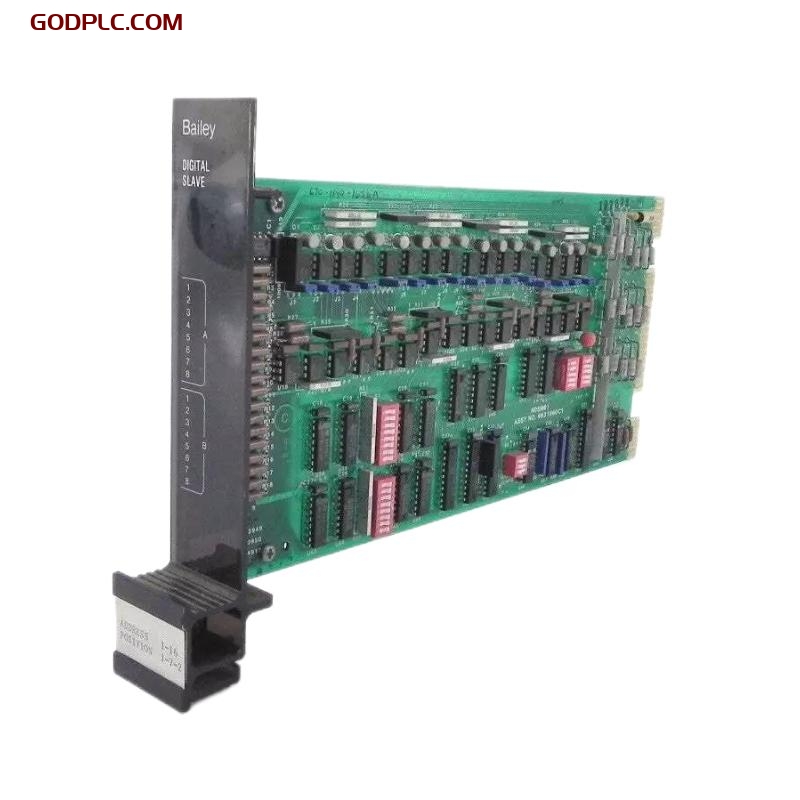

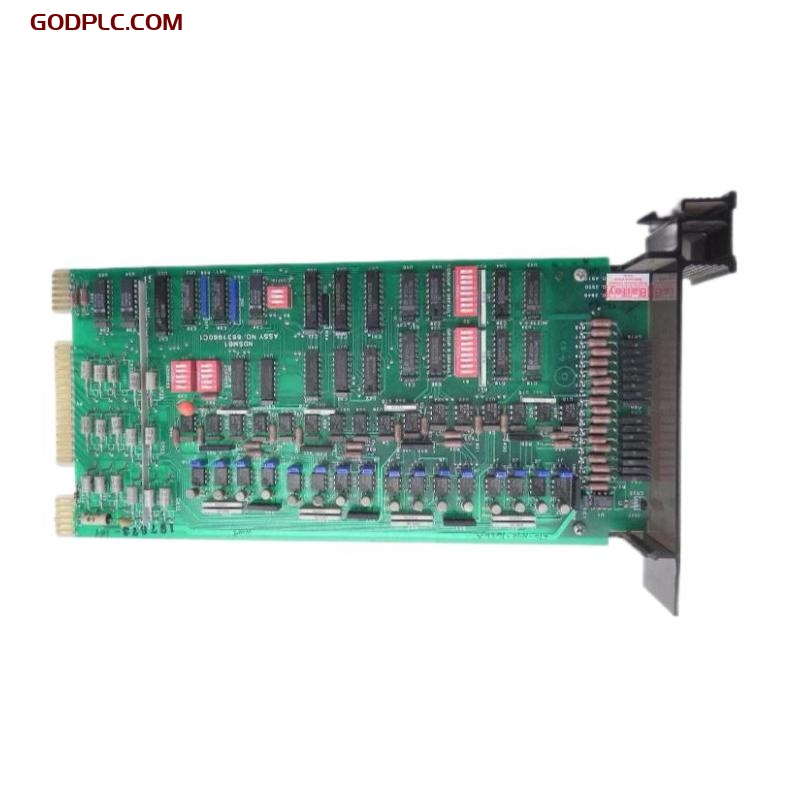

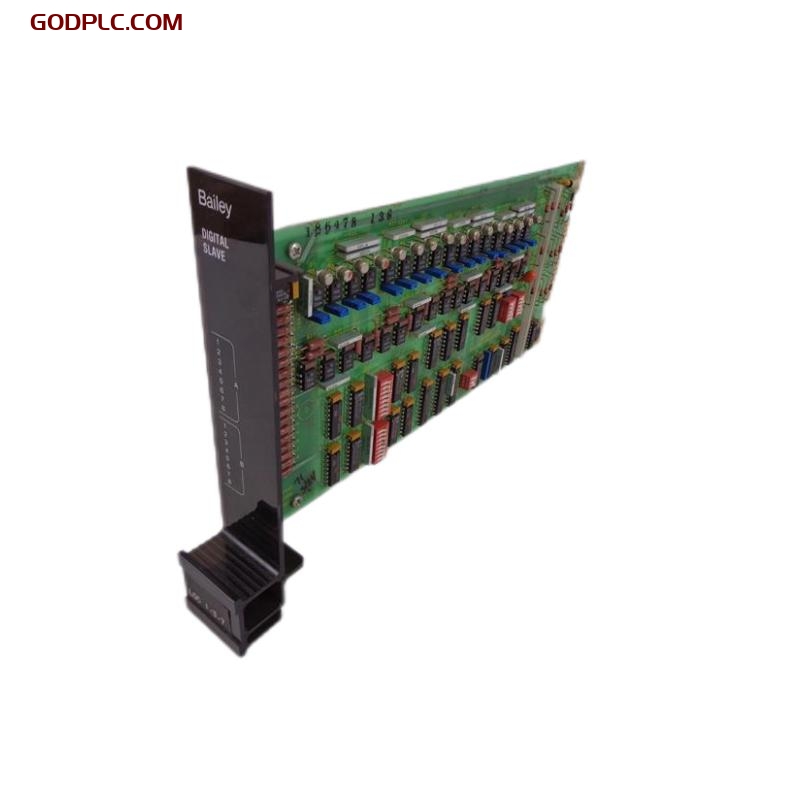

ABB Bailey NDSM01 Digital Slave Module Product Introduction

The ABB Bailey NDSM01 Digital Slave Module is a high-performance input/output module designed by ABB for its 800xA control systems. As a digital slave module, the NDSM01 provides reliable digital signal input and output capabilities, making it widely applicable in industrial automation control systems, especially in scenarios where multiple channels of digital signals need to be processed. The module uses advanced hardware technology and efficient communication interfaces to ensure high stability and reliability even in harsh industrial environments.

Key Features

1. Multi-Channel Digital Signal Processing

   • The NDSM01 module supports multiple independent input/output channels, capable of processing digital signals from external devices simultaneously. Each channel has independent signal processing functionality, ensuring accuracy in data acquisition and control.

2. Flexible Installation and Configuration

   • The module uses DIN rail mounting, which makes it easy to deploy in various industrial environments. It supports simple installation and hot-swapping, allowing users to replace faulty modules without system shutdown, improving system availability.

3. High Reliability and Redundancy Design

   • The NDSM01 module offers excellent reliability and stable operation under extreme environmental conditions. It also supports redundant configurations, ensuring that backup modules can take over when the primary module fails, maintaining the continuous operation of the system.

4. Strong Anti-Interference

   • The module is designed to withstand electromagnetic interference, ensuring stable signal transmission even in environments with strong electrical noise. This prevents signal loss or incorrect transmission.

5. Real-Time Diagnostics and Status Monitoring

   • The NDSM01 provides real-time monitoring, enabling operators to track the module’s operational status. When a fault occurs, the module generates an alarm and produces a detailed diagnostic report to help engineers quickly identify and resolve the issue.

6. Wide Application Range

   • The NDSM01 Digital Slave Module is widely used across industries such as oil and gas, power, metallurgy, chemical, and water treatment. It is particularly suited for applications requiring the processing of large volumes of digital signals in large-scale and complex automation control systems.

7. Efficient Data Transmission and Integration

   • The module supports seamless integration with ABB 800xA systems and uses efficient communication interfaces to ensure stable data transmission with the main control system. It also supports remote configuration and maintenance, simplifying operations and maintenance tasks.

8. High-Quality Industrial Design

   • The NDSM01 module features industrial-grade design that meets the requirements of harsh environmental conditions. Its robust casing protects the module from physical damage, ensuring long-term stable operation.

Product Specifications

Installation and Maintenance

The ABB Bailey NDSM01 Digital Slave Module is designed for easy installation using a standardized DIN rail mounting method, making it suitable for deployment in a variety of industrial control systems. The module supports hot-swapping, allowing users to replace faulty modules without interrupting system operation, which minimizes downtime.

The module also features real-time diagnostics. In case of an anomaly, it automatically generates an alarm and provides a detailed diagnostic report, enabling operators to quickly pinpoint the cause and perform repairs, thereby improving system reliability and maintenance efficiency.

Applications

The NDSM01 Digital Slave Module is suitable for use in industries requiring digital signal acquisition and control. Typical applications include:

• Oil & Gas: Collecting digital signals from equipment such as valves and pumps in oil and gas fields.
• Power Industry: Monitoring and controlling the status of electrical equipment in power systems.
• Metallurgical Industry: Monitoring production equipment in automation control systems.
• Chemical Industry: Collecting digital switching signals from equipment in chemical production processes.
• Water Treatment Industry: Collecting and processing digital signals in water treatment facilities.
