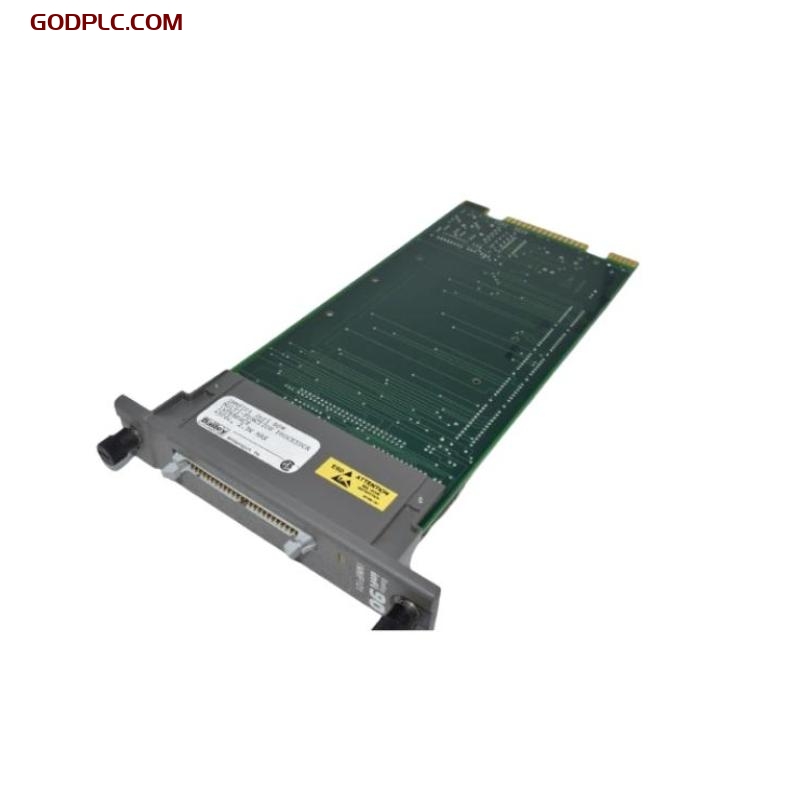

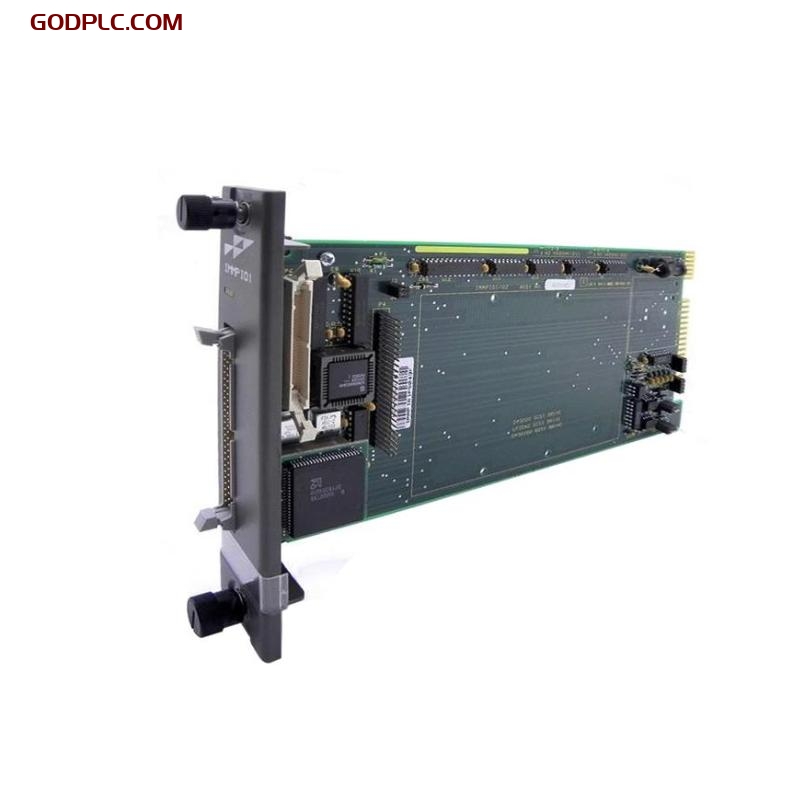

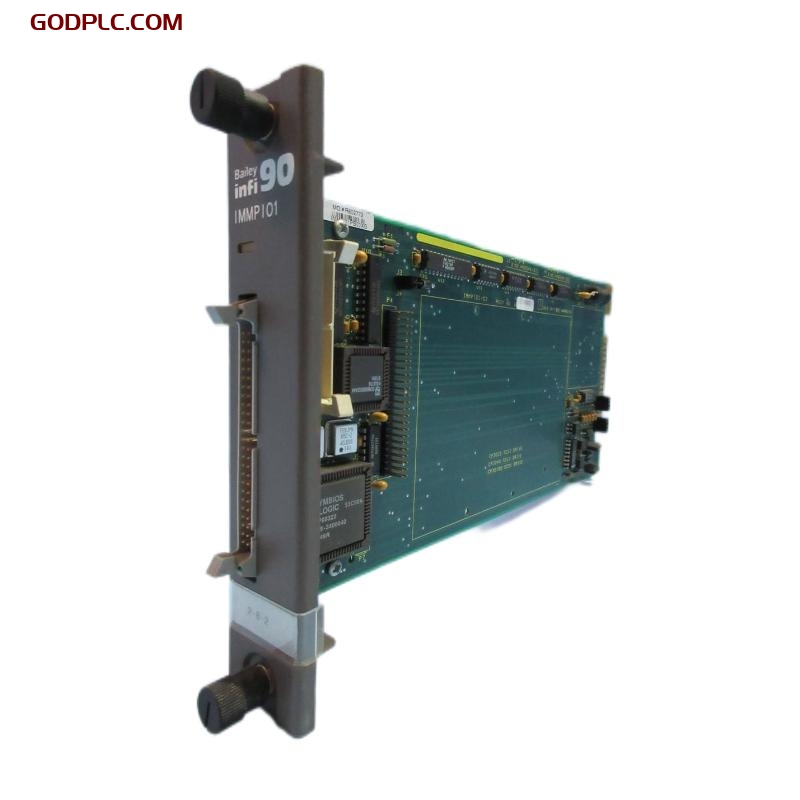

ABB Bailey IMMPI01 Multi-Function Processor Interface Module
ABB Bailey IMMPI01 Multi-Function Processor Interface Module
The ABB Bailey IMMPI01 is a Multi-Function Processor Interface Module designed to facilitate seamless communication between the Infi 90 Distributed Control System (DCS) and various field devices and networks. This module serves as a critical component in industrial automation, enabling efficient data exchange and integration across diverse control environments.
Product Overview
The IMMPI01 module acts as a communication bridge, supporting multiple communication protocols to ensure compatibility with a wide range of field devices, such as Programmable Logic Controllers (PLCs), sensors, and actuators. Its robust design and high-performance capabilities make it suitable for demanding industrial applications, ensuring reliable and efficient data transmission.
Key Features
-
Multi-Protocol Support
- The IMMPI01 supports various communication protocols, including Modbus, PROFIBUS DP, and HART, allowing for flexible integration with different field devices.
-
High-Speed Data Transmission
- Designed for high-speed data transfer with minimal latency, the module ensures timely and accurate data communication essential for critical industrial processes.
-
Rugged and Reliable Design
- Built to withstand harsh industrial environments, the IMMPI01 is resistant to extreme temperatures, vibrations, and shocks, ensuring continuous operation under challenging conditions.
-
User-Friendly Configuration
- The module offers straightforward configuration and maintenance, featuring an intuitive interface and comprehensive documentation to streamline setup and operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | IMMPI01 |
| Product Type | Multi-Function Processor Interface Module |
| Power Requirements | +5 VDC |
| Maximum Power | 10W |
| Logic Capacity | – Blocks: 5000 – Lines: 2000 |
| I/O Communication | Supports up to 64 modules |
| Dimensions | – Inches: 7.0″ x 2.0″ x 13.0″ – Centimeters: 178 mm x 51 mm x 33mm |
| Weight | – Pounds: 1 lb 1.0 oz – Kilograms: 0.5 kg |
| Communication Ports | RS-232/RS-485 |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +80°C |
| Mounting | Compatible with standard INFI 90 OPEN module mounting units |
| Certifications | Compliant with industrial standards for process control equipment |
Applications
The IMMPI01 module is widely used in various industrial sectors requiring reliable and efficient process control and data communication. Its applications include:
-
Oil and Gas Industry
- Monitoring and controlling extraction processes, including wellheads, pipelines, and refineries.
-
Power Generation
- Managing and supervising power plants, including turbines, generators, and switchgear.
-
Chemical and Petrochemical Industries
- Controlling and monitoring chemical processes, including reactors, distillation columns, and pipelines.
-
Water and Wastewater Treatment
- Overseeing water and wastewater treatment facilities, including pumps, valves, and aeration systems.
-
Manufacturing Automation
- Integrating with PLCs and SCADA systems to automate manufacturing processes, enhancing efficiency and productivity.
Related Models
For users seeking modules with similar functionalities or additional features, ABB offers a range of related models within the same series:
| Model | Description |
|---|---|
| IMMFP01 | Multi-Function Processor Module with standard processing capabilities. |
| IMMFP03 | Enhanced Multi-Function Processor Module with advanced features. |
| IMRIO02 | Remote I/O Slave Module for distributed control systems. |
| IMFEC12 | Analog Input Module designed for accurate data acquisition from field instruments. |
| IMDSI12 | Digital Input Module ensuring reliable signal detection and processing. |
| IMDSO14 | Digital Output Module providing reliable signal output for control applications. |
| IMASI23 | Advanced Analog Input Module supporting multiple signal types and ranges. |
| INSEM01 | Event Sequence Master Module for precise event recording and analysis. |
| IMCPM02 | Communication Processor Module facilitating network integration and data exchange. |
| IMQRS01 | Redundant Synchronization Module ensuring system reliability and uptime. |
ABB Bailey IMMPI01 is in stock. Contact us for quick quotes and competitive prices.
