ABB Bailey IMMFP12 Multi-Function Processor Module Fast Delivery

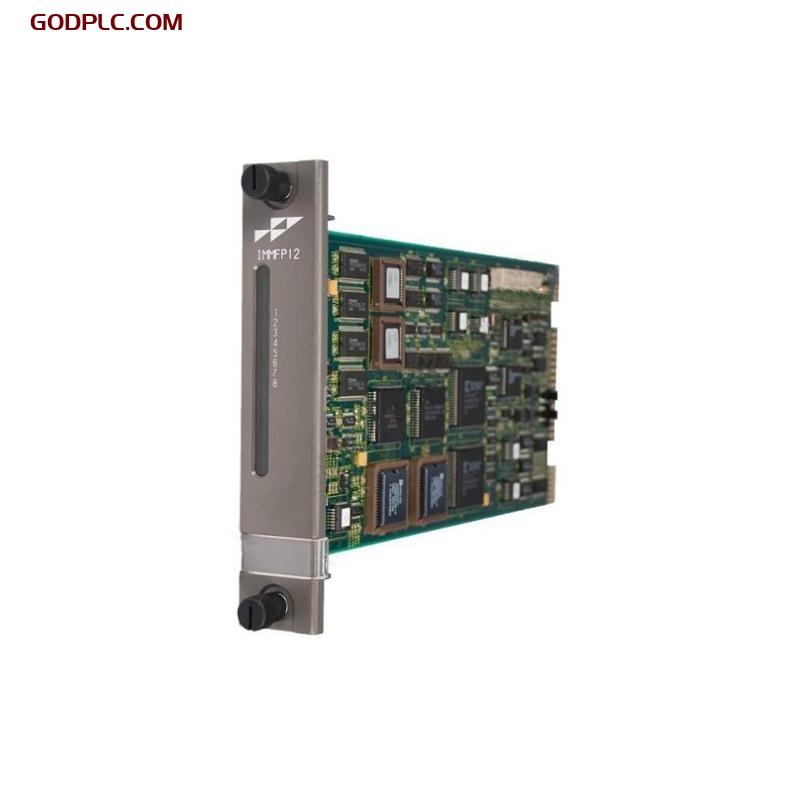

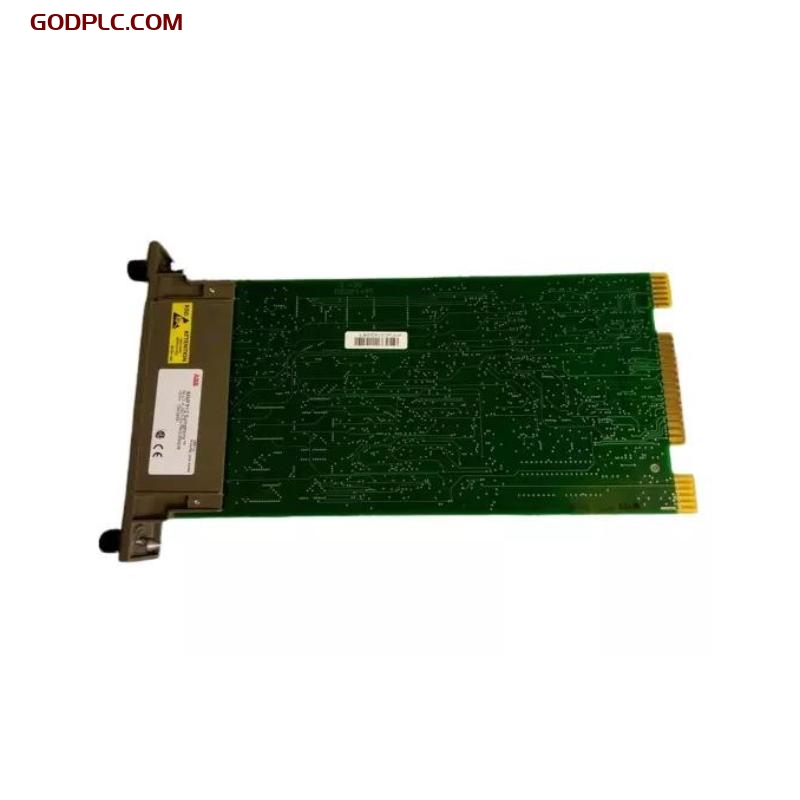

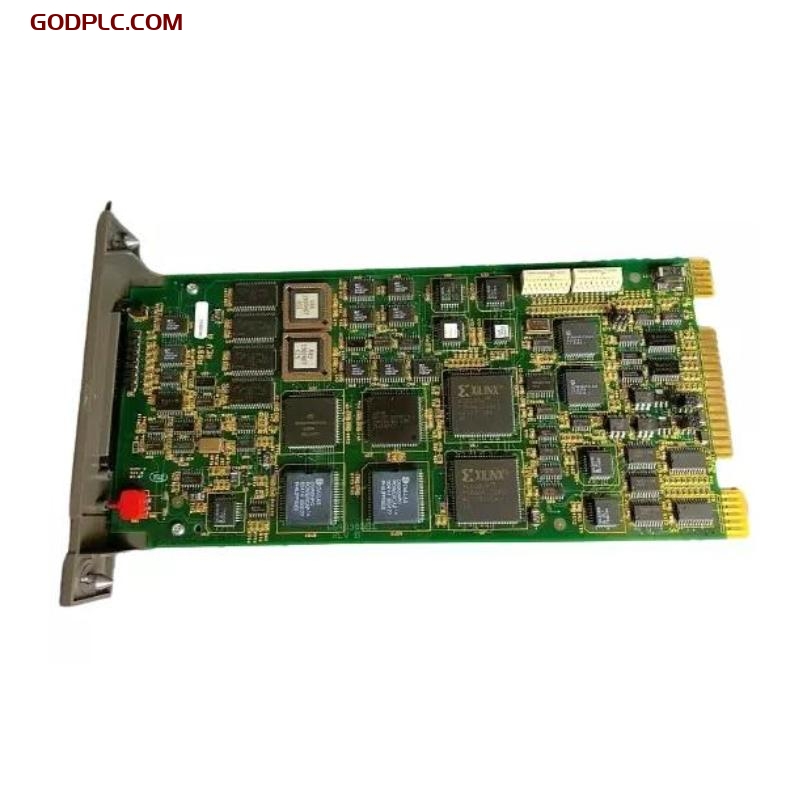

ABB Bailey IMMFP12 Multi-Function Processor Module
The ABB Bailey IMMFP12 is a high-performance multi-function processor module designed for industrial automation applications. As an integral component of the INFI 90 OPEN system, it offers robust computing capabilities, extensive memory, and flexible connectivity options, making it suitable for complex control tasks in various industrial environments.
Product Overview
The IMMFP12 serves as a versatile control processor capable of handling multiple loop, analog, sequential, batch, and advanced control applications. It enhances information processing with advanced data acquisition features, facilitating the implementation of sophisticated control strategies. Fully compatible with the INFI 90 OPEN system, the IMMFP12 ensures seamless integration in terms of functionality, communication, and packaging. Notably, it offers double the memory capacity compared to its predecessor, the IMMFP11, providing greater flexibility for more demanding applications.
Key Features
-
High-Performance Processing
- Equipped with a 32-bit microprocessor running at 16 MHz, the IMMFP12 ensures efficient and fast processing for complex industrial tasks.
-
Enhanced Memory Capacity
- The module boasts a total memory of 512 kbytes ROM, 512 kbytes RAM, and 256 kbytes NVRAM, providing ample storage for programs and data.
-
Flexible Communication Interfaces
- It features dual RS-232-C serial ports or a combination of one RS-485 and one RS-232-C port, supporting communication rates up to 19.2 kbaud, enhancing connectivity within industrial networks.
-
Scalability
- The IMMFP12 can support up to 64 serial stations at 40 kbaud (IISAC01) or 8 serial stations at 5 kbaud (NDCS03 or NDIS01), allowing for scalable system configurations.
-
Environmental Resilience
- Designed to operate within a temperature range of 0°C to 70°C and relative humidity of 5% to 95% (non-condensing), the module is suitable for diverse industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Microprocessor | 32-bit processor (16-bit external bus), 16 MHz operating speed |
| Memory | – Total: 512 kbytes ROM, 512 kbytes RAM, 256 kbytes NVRAM |
| Power Requirements | +5 VDC at 2 A (typically 10 W) |
| Serial Ports | – Two RS-232-C ports, or – One RS-485 and one RS-232-C port – Data rates up to 19.2 kbaud |
| Station Support | – 64 serial stations at 40 kbaud (IISAC01) – 8 serial stations at 5 kbaud (NDCS03 or NDIS01) |
| Backup Communication Channel | 1 Mbaud serial connection |
| Electromagnetic Interference | Specific values not available; recommended to keep cabinet doors closed and avoid using communication equipment within 2 meters of the cabinet |
| Programmability | Supported programming languages: C, BASIC, Batch, Ladder, Function Codes, Custom Functions |
| Dimensions (W x H x D) | 35.56 mm x 177.80 mm x 298.45 mm |
| Shipping Weight | 1.5 kg |
| Mounting | Occupies one slot in standard INFI 90 OPEN module mounting unit |
| Operating Temperature | 0°C to 70°C |
| Relative Humidity | 5% to 95% up to 55°C (non-condensing); 5% to 45% above 55°C (non-condensing) |
| Altitude | Sea level to 3 km |
| Air Quality | Non-corrosive |
| Certifications | – CSA certified for use as process control equipment in non-hazardous locations – Factory Mutual approved for use in Class I, Division 2 hazardous locations |
Applications
The IMMFP12 module is widely utilized in industrial sectors requiring reliable and efficient process control. Its applications include:
-
Process Industries
- Managing control algorithms and data acquisition in industries such as chemical processing, oil and gas, and pharmaceuticals.
-
Manufacturing Automation
- Integrating with Programmable Logic Controllers (PLCs) and Supervisory Control and Data Acquisition (SCADA) systems to automate manufacturing processes.
-
Power Generation
- Monitoring and controlling parameters in power plants to ensure efficient and safe operations.
-
Water and Wastewater Treatment
- Overseeing treatment processes to maintain compliance with environmental standards.
-
Metallurgical Processes
- Controlling critical parameters in metal production to ensure product quality and process efficiency.
Related Models
For users seeking modules with similar functionalities or additional features, ABB offers a range of related models within the same series:
| Model | Description |
|---|---|
| IMMFP11 | Multifunction processor module with standard memory capacity. |
| IMMFP13 | Enhanced processor module with additional communication interfaces. |
| IMCPM02 | Communication processor module facilitating network integration and data exchange. |
| INSEM01 | Event sequence master module for precise event recording and analysis. |
| IMDSO14 | Digital output module providing reliable signal output for control applications. |
| IMFEC12 | Analog input module designed for accurate data acquisition from field instruments. |
| IMASI23 | Advanced analog input module supporting multiple signal types and ranges. |
| IMDSI12 | Digital input module ensuring reliable signal detection and processing. |
| IMCIS22 | Control interface module enabling seamless integration with various control systems. |
| IMQRS01 | Redundant synchronization module ensuring system reliability and uptime. |
ABB Bailey IMMFP12 is in stock. Contact us for quick quotes and competitive prices.
