ABB Bailey IMMFP01 Multi-Function Processor Module Original stock

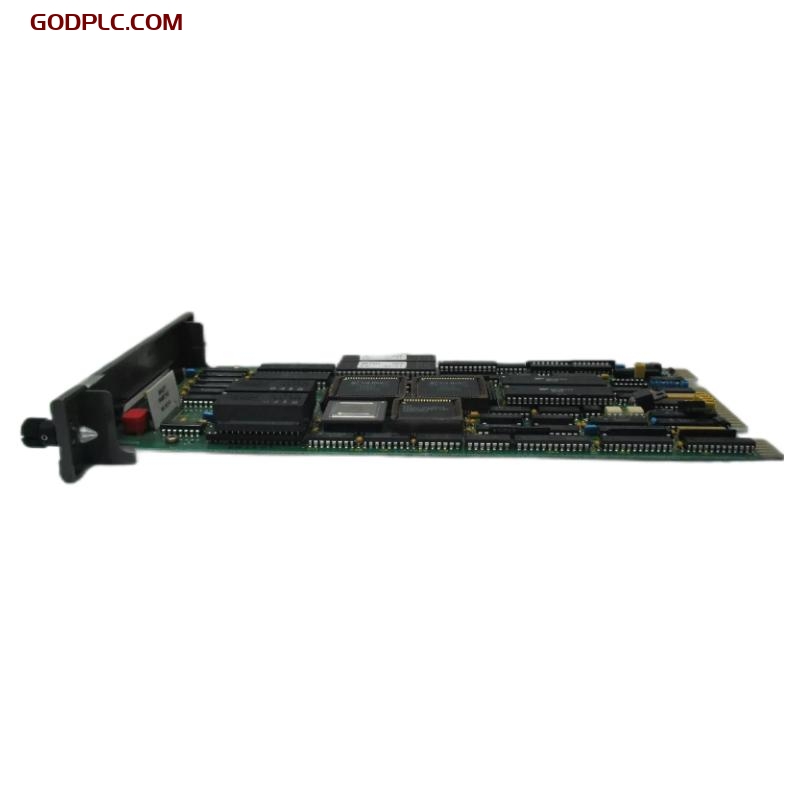

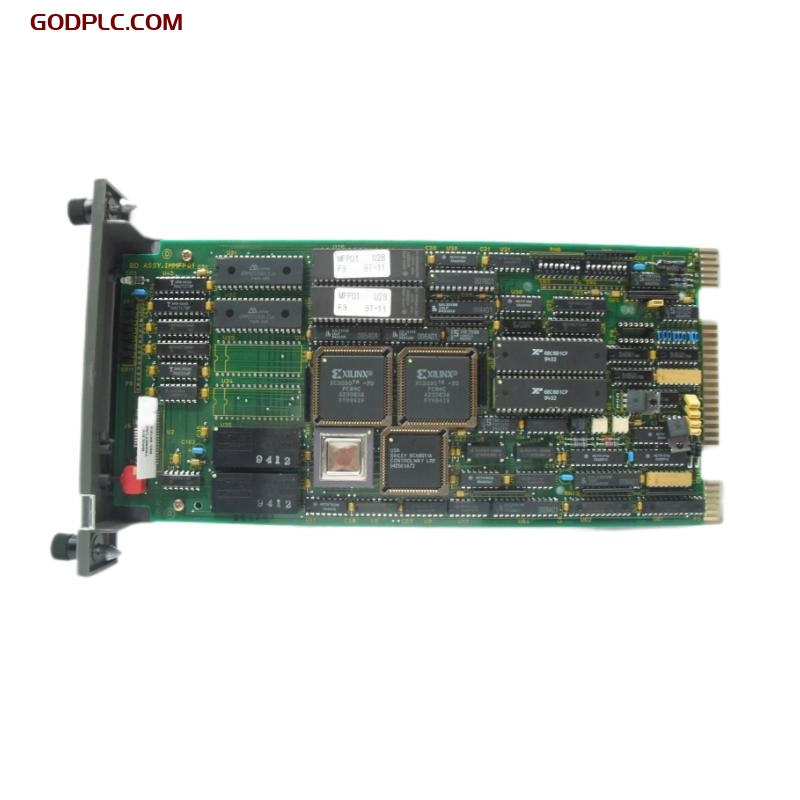

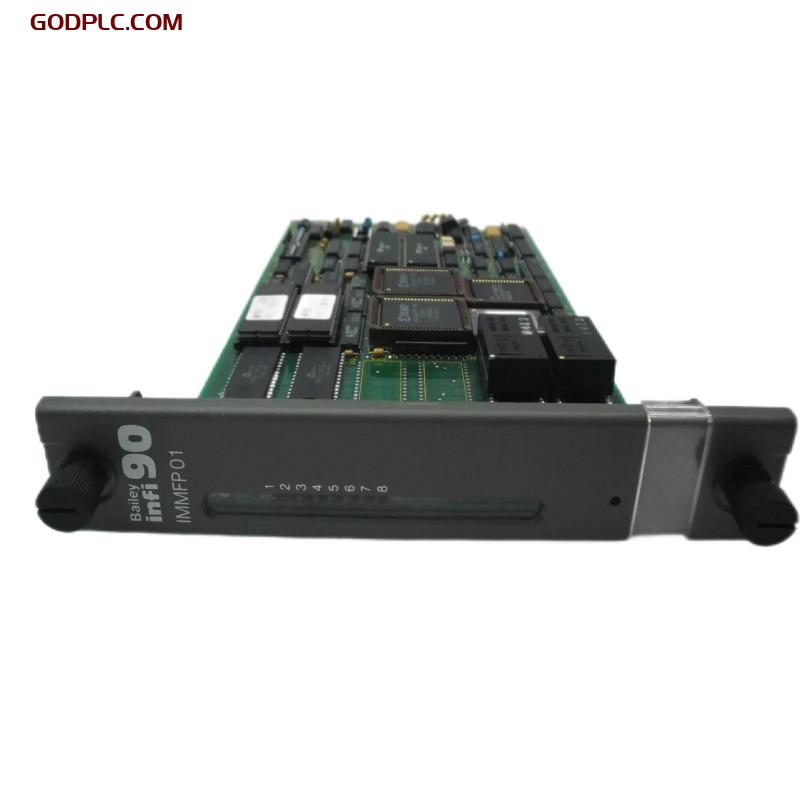

ABB Bailey IMMFP01 Multi-Function Processor Module
The ABB Bailey IMMFP01 is a versatile multi-function processor module designed for complex industrial control applications. As a pivotal component of the ABB Infi 90 Distributed Control System (DCS), it integrates advanced processing capabilities to manage control algorithms, data acquisition, and process signal outputs. This module is engineered to enhance system performance, reliability, and flexibility in various industrial environments.
Product Overview
The IMMFP01 serves as a standalone controller capable of executing intricate control tasks. It offers high-speed processing and substantial data storage, making it suitable for contemporary control systems. The module is user-configurable and interacts seamlessly with various analog and digital input/output modules, facilitating comprehensive process control and monitoring.
Key Features
-
High-Performance Processing
- Equipped with a 32-bit microprocessor operating at 16 MHz, the IMMFP01 ensures swift and efficient execution of control algorithms.
-
Robust Memory Capacity
- The module boasts a total memory of 512 KB ROM, 256 KB RAM, and 64 KB NVRAM, providing ample space for data storage and program execution.
-
Flexible Communication Interfaces
- It supports dual RS-232-C ports or a combination of one RS-485 and one RS-232-C port, with data transmission rates up to 19.2 kbps, facilitating versatile connectivity options.
-
Scalability
- The IMMFP01 can support up to 64 serial stations at 40 kbps (IISAC01) or 8 serial stations at 5 kbps (NDCS03 or NDIS01), allowing for scalable system configurations.
-
Environmental Resilience
- Designed to operate within a temperature range of 0°C to 70°C and relative humidity of 5% to 95% (non-condensing), the module is suitable for diverse industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Microprocessor | 32-bit processor (16-bit external bus), 16 MHz operating speed |
| Memory | – Total: 512 KB ROM, 256 KB RAM, 64 KB NVRAM – Available: 163,248 bytes RAM, 62,656 bytes NVRAM |
| Power Requirements | +5 V DC at 2 A (typically 10 W) |
| Serial Ports | – Two RS-232-C ports or – One RS-485 and one RS-232-C port – Data rates up to 19.2 kbps |
| Station Support | – 64 serial stations at 40 kbps (IISAC01) – 8 serial stations at 5 kbps (NDCS03 or NDIS01) |
| Backup Communication Channel | 1 Mbps serial connection |
| Electromagnetic Interference | Specific values not available; recommended to keep cabinet doors closed and avoid using communication equipment within 2 meters of the cabinet |
| Programmability | Supported programming languages: C, BASIC, Batch, Ladder, Function Codes, Custom Functions |
| Dimensions (W x H x D) | 35.56 mm x 177.80 mm x 298.45 mm |
| Weight | 0.431 kg |
| Mounting | Occupies one slot in standard INFI 90 module mounting unit |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Relative Humidity | 5% to 95% (non-condensing) up to 55°C; 5% to 45% above 55°C (non-condensing) |
| Altitude | Sea level to 3 km |
| Air Quality | Non-corrosive |
| Certifications | – CSA certified for use as process control equipment in non-hazardous locations – Factory Mutual approved for use in Class I, Division 2 hazardous locations |
Applications
The IMMFP01 module is widely utilized in industrial sectors requiring reliable and efficient process control. Its applications include:
-
Process Industries
- Managing control algorithms and data acquisition in industries such as chemical processing, oil and gas, and pharmaceuticals.
-
Manufacturing Automation
- Integrating with Programmable Logic Controllers (PLCs) and Supervisory Control and Data Acquisition (SCADA) systems to automate manufacturing processes.
-
Power Generation
- Monitoring and controlling parameters in power plants to ensure efficient and safe operations.
-
Water and Wastewater Treatment
- Overseeing treatment processes to maintain compliance with environmental standards.
-
Metallurgical Processes
- Controlling critical parameters in metal production to ensure product quality and process efficiency.
Related Models
For users seeking modules with similar functionalities or additional features, ABB offers a range of related models within the same series:
| Model | Description |
|---|---|
| IMMFP02 | Enhanced multi-function processor module with extended memory capacity. |
| IMMFP03 | Advanced processor module designed for high-speed data processing and control tasks. |
| IMCPM02 | Communication processor module facilitating network integration and data exchange. |
| INSEM01 | Event sequence master module for precise event recording and analysis. |
| IMDSO14 | Digital output module providing reliable signal output for control applications. |
| IMFEC12 | Analog input module designed for accurate data acquisition from field instruments. |
| IMASI23 | Advanced analog input module supporting multiple signal types and ranges. |
| IMDSI12 | Digital input module ensuring reliable signal detection and processing. |
| IMCIS22 | Control interface module enabling seamless integration with various control systems. |
| IMQRS01 | Redundant synchronization module ensuring system reliability and uptime. |
ABB Bailey IMMFP01 is in stock. Contact us for quick quotes and competitive prices.
