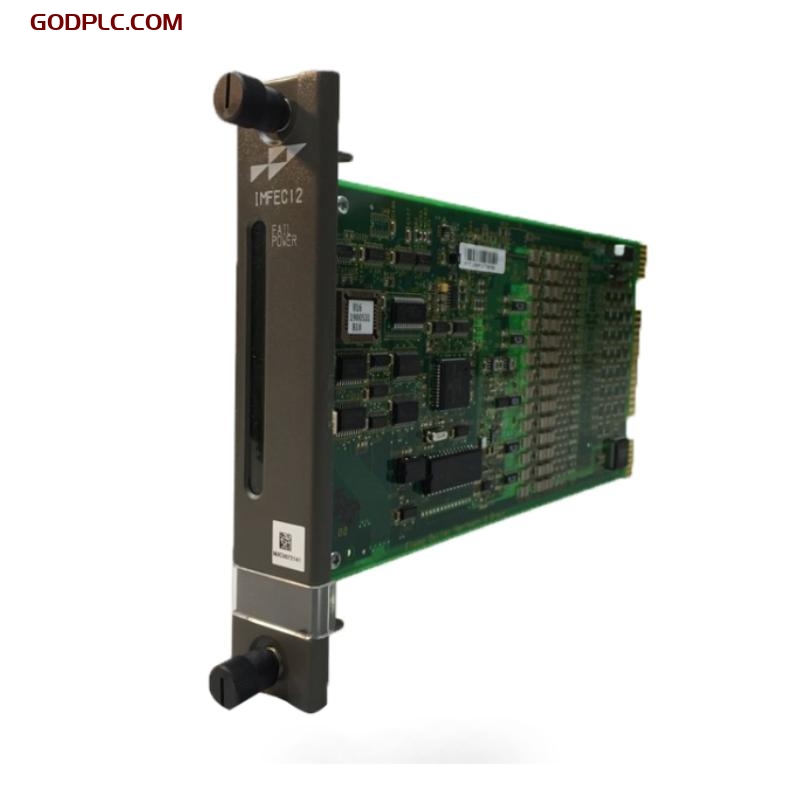

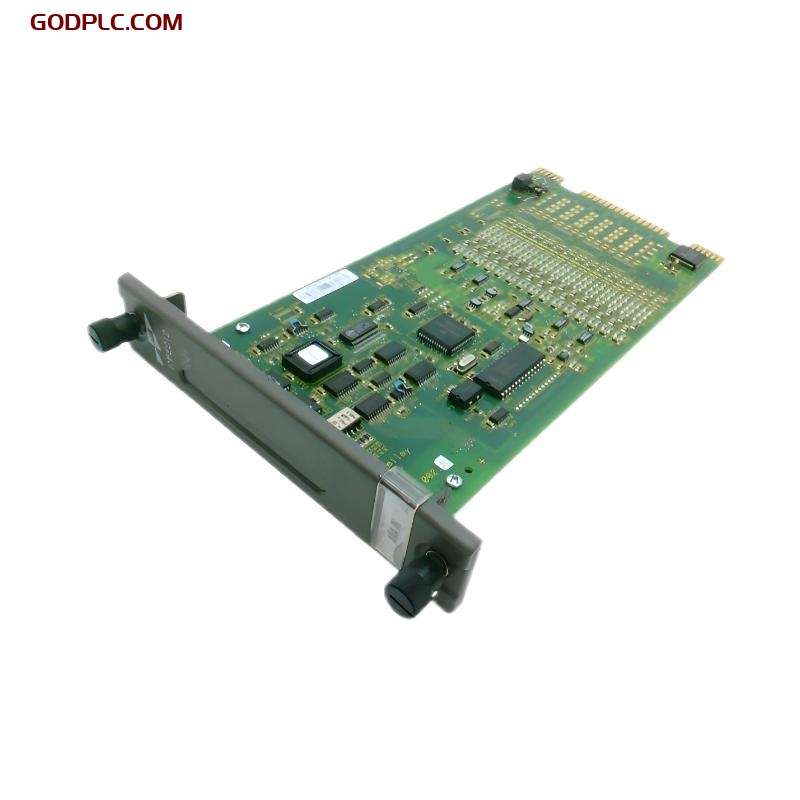

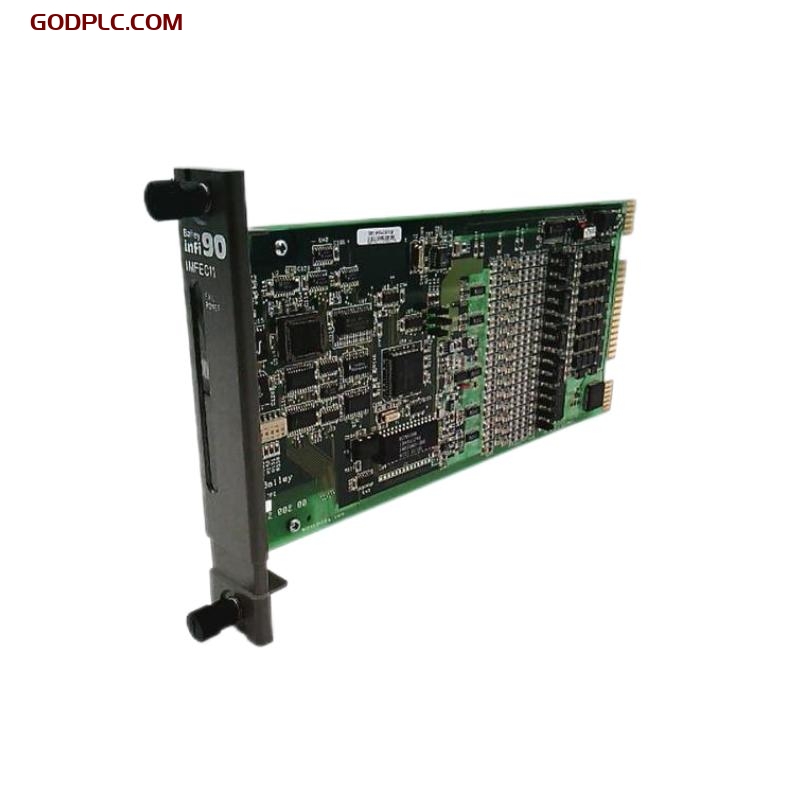

ABB Bailey IMFEC12 Analog Input Module
The ABB Bailey IMFEC12 is a high-precision analog input module designed for industrial automation and process control systems. It serves as a critical component in ABB’s Infi 90 and Net 90 Distributed Control Systems (DCS), facilitating the accurate acquisition of analog signals from various field instruments such as temperature sensors, pressure transducers, and flow meters. This module ensures reliable data conversion and transmission to the central processing unit, enabling precise monitoring and control of industrial processes.
Product Overview
The IMFEC12 module is engineered to convert analog signals into digital data that can be processed by the DCS. It supports multiple input types, including voltage and current signals, making it versatile for various industrial applications. The module’s high accuracy and reliability make it suitable for environments where precise data acquisition is essential.
Key Features
-
High Accuracy and Resolution
- The module offers a measurement accuracy of ±0.1% full scale, ensuring precise data acquisition.
- It provides a resolution of 12 bits, allowing for detailed signal representation.
-
Multiple Input Channels
- The IMFEC12 supports 12 or 15 analog input channels, accommodating various input signals such as 4-20mA or 1-5VDC.
-
Robust Design
- Designed to operate within a temperature range of -20°C to +50°C, the module is suitable for harsh industrial environments.
- It features a compact form factor with dimensions of 229 mm x 51 mm x 33 mm and a weight of 1 kg, facilitating easy integration into existing systems.
-
Efficient Performance
- With a response time of ≤10ms and a sampling rate of 1000Hz, the IMFEC12 ensures timely data processing for dynamic applications.
-
Compatibility and Integration
- The module is compatible with ABB’s Infi 90 and Net 90 DCS systems, ensuring seamless integration and communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IMFEC12 |
| Number of Channels | 12 or 15 analog input channels |
| Input Signal Types | 4-20mA, 1-5VDC |
| Input Impedance | ≥100kΩ |
| Measurement Accuracy | ±0.1% full scale |
| Resolution | 12-bit |
| Sampling Rate | 1000Hz |
| Common Mode Rejection | 60 dB |
| Power Supply Voltage | 24V DC ±20% |
| Power Consumption | ≤5W |
| Response Time | ≤10ms |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 229 mm x 103 mm x 33 mm |
| Weight | 1 kg |
| Protection Class | IP20 |
| Communication Interfaces | Modbus TCP/IP, Profibus, Ethernet, etc. |
| Mounting Method | DIN rail mounting |
Applications
The IMFEC12 module is widely used across various industrial sectors where precise analog signal acquisition is crucial. Its applications include:
-
Process Control
- Monitoring and controlling parameters such as temperature, pressure, and flow in industries like chemical processing, oil and gas, and pharmaceuticals.
-
Factory Automation
- Integrating with Programmable Logic Controllers (PLCs) and Supervisory Control and Data Acquisition (SCADA) systems to automate manufacturing processes.
-
Energy Management
- Collecting data from power generation and distribution systems to optimize energy usage and ensure reliable operation.
-
Water and Wastewater Treatment
- Measuring water quality parameters to maintain compliance with environmental regulations.
-
Metallurgy
- Monitoring critical parameters in steel and aluminum production processes to ensure product quality and process efficiency.
Related Models
For users seeking modules with similar functionalities or additional features, ABB offers a range of related models within the same series:
| Model | Description |
|---|---|
| IMFEC11 | Analog input module with 11 channels, suitable for medium-scale automation systems. |
| IMFEC13 | Enhanced analog input module designed for complex process control applications. |
| IMFEC14 | High-density input module ideal for large-scale data acquisition systems. |
| IMFEC15 | Analog input module offering higher accuracy and faster response times. |
| IMFEC16 | Multifunctional analog input module supporting various signal types. |
| IMFEC17 | Durable input module designed for harsh industrial environments. |
| IMFEC18 | Compact design suitable for applications with limited space. |
| IMFEC19 | Next-generation input module with enhanced communication capabilities. |
| NRAI01 | High-performance analog input/output module for industrial automation. |
| IMRIO02 | Remote I/O module featuring analog input and output functionalities. |
ABB Bailey IMFEC12 is in stock. Contact us for quick quotes and competitive prices.
