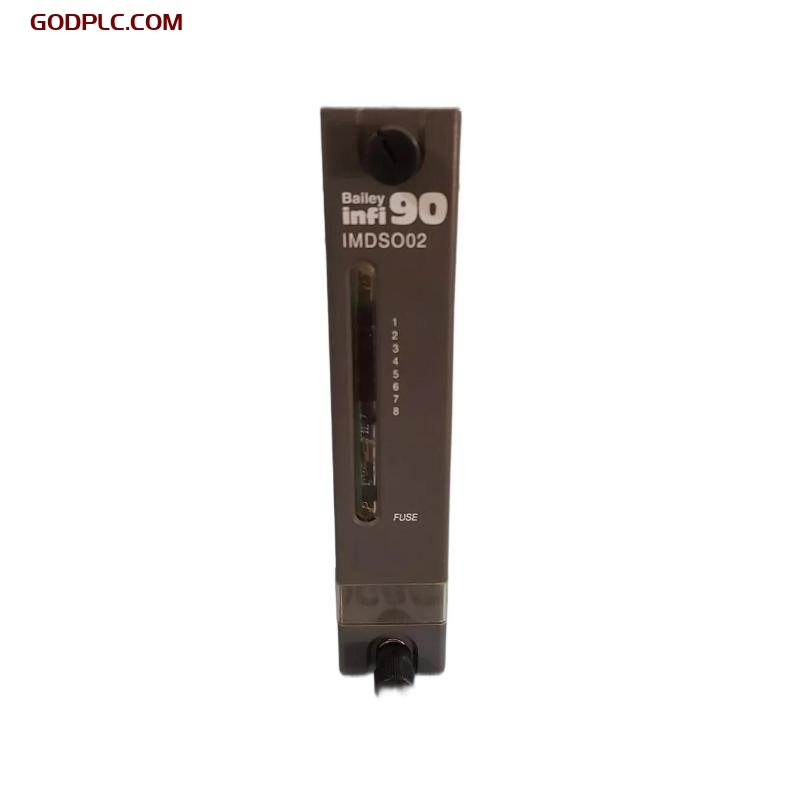

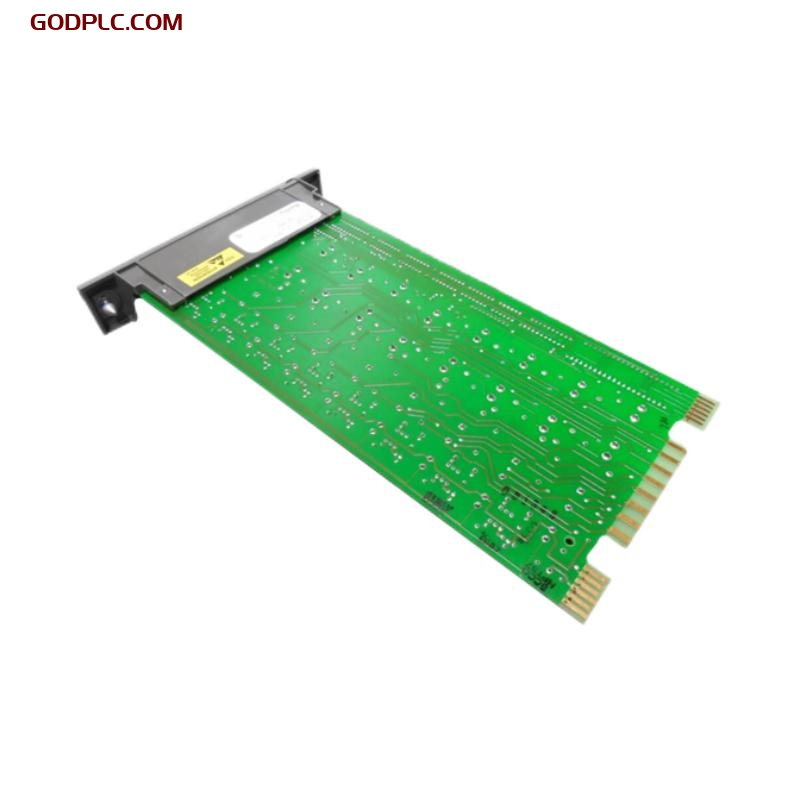

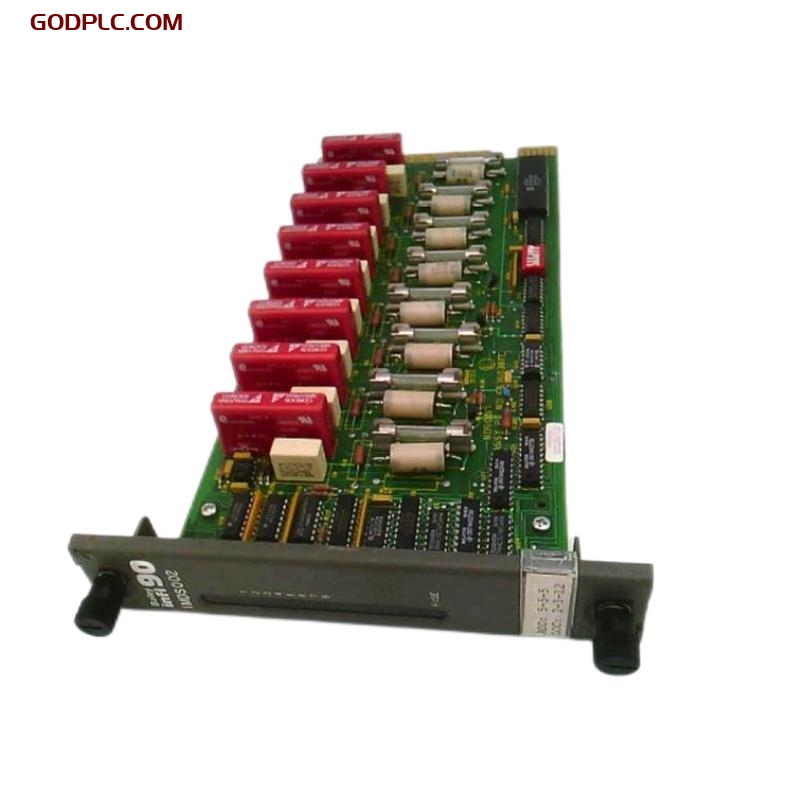

ABB Bailey IMDSO02 6636038F2 Digital Output Slave Module

  • Manufacturer: ABB Bailey
  • Product Number: IMDSO02
  • Condition: New & In Stock
  • Product Type: Digital Output Slave Module
  • Origin: Switzerland
  • Payment Methods: T/T, Western Union
  • Dimensions: 200 x 120 x 50mm
  • Weight: 0.508kg
  • Order Number: 6636038F2
  • Shipping Port: Xiamen, China
  • Lead Time: 1-3 Working Days
  • Warranty: One Year
  • Certificate: COO
  • Courier partners: DHL, UPS, TNT, FedEx and EMS.

Product Detail

Contact Us

FAQS

Packing & Delivery

ABB Bailey IMDSO02 6636038F2 Digital Output Slave Module

The ABB Bailey IMDSO02 6636038F2 is a digital output slave module designed for use in the Infi 90 DCS (Distributed Control System). This module is designed to provide high-performance digital outputs, making it suitable for controlling field devices in industrial automation applications. It is an essential component in process control systems, ensuring that digital signals are reliably sent from the DCS to external devices such as valves, actuators, and other field equipment.

This module supports a wide range of industrial applications in sectors such as power generation, chemical processing, and oil & gas. It is designed for high reliability and precision, offering superior performance and minimal downtime. Its robust features, including diagnostic functions and support for redundancy, make it an ideal solution for mission-critical systems that require continuous, high-quality operation.

The IMDSO02 6636038F2 module is part of ABB’s Bailey Infi 90 system, offering seamless integration with other modules in the system. Its advanced design allows for easy installation and maintenance, helping to reduce system complexity while ensuring high operational availability.

Key Features:

  • Digital Output Channels: The module provides multiple digital output channels to control field devices with high reliability and precision.
  • High Performance: Optimized for fast response times, suitable for high-demand automation applications.
  • Redundancy Support: Supports redundant configuration to ensure high system availability and fault tolerance.
  • Diagnostic Capabilities: Full diagnostics are provided for troubleshooting and system health monitoring.
  • Compact Design: Designed for easy integration in control panels and industrial enclosures.
  • Wide Application Range: Suitable for diverse industrial applications requiring robust and reliable digital output control.

Technical Specifications

Parameter Value
Model Number ABB Bailey IMDSO02 6636038F2
Type Digital Output Slave Module
Output Channels 16 Digital Outputs
Output Voltage 24V DC (nominal) ±20%
Output Current 0.5A per channel (max)
Response Time 20 ms (typical)
Mounting Type DIN Rail
Dimensions (W x H x D) 200 mm x 120 mm x 50 mm
Weight 0.508 kg
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95% non-condensing
Protection Class IP20
Isolation Voltage 1500V (system to output channels)
Diagnostic Features Full diagnostics for output signal integrity, failure detection, and status indicators
LED Indicators Power, communication, and output status

Additional Features:

  • High Reliability: Built for industrial environments, providing stable and continuous output control for demanding automation tasks.
  • Redundant Configuration: Ensures that critical outputs are maintained even in the event of a failure.
  • System Integration: Seamlessly integrates with other Infi 90 system components, ensuring smooth data flow across the entire control system.
  • Ease of Installation and Maintenance: Simple mounting and wiring, with easy access to diagnostic information to reduce maintenance time.
  • Enhanced Safety Features: The module is designed to meet international safety standards, including IEC 61508 and SIL 3 compliance.

Related Models and Series:

Model Number Description
IMDSO01 Digital Output Module for Infi 90 DCS
IMDSO03 Advanced Digital Output Slave Module
IMDIO01 Digital I/O Module for Infi 90 System
IMDBM01 Bus Module for Infi 90 Communication
IMDIO02 Digital I/O Expansion Module
IMBIM01 Fieldbus Interface Module
IMBEM01 Ethernet-Based Communication Module
IMBDO01 Digital Output Expansion Module
IMBPM01 Fieldbus Power Supply Module
IMBCM01 Communication Module for Infi 90 DCS

ABB Bailey IMDSO02 6636038F2 is in stock. Contact us for quick quotes and competitive prices.
