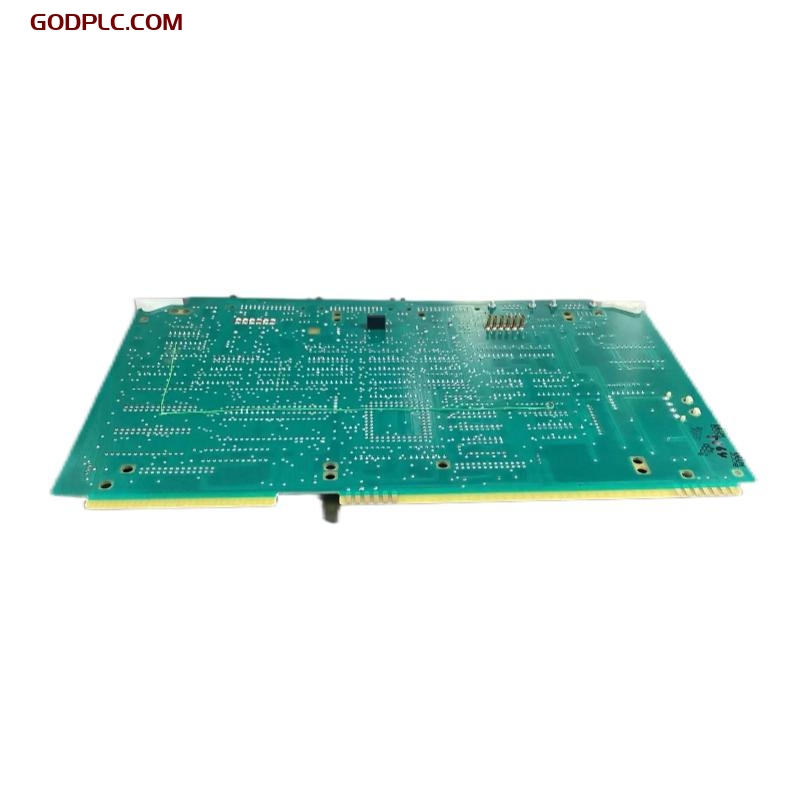

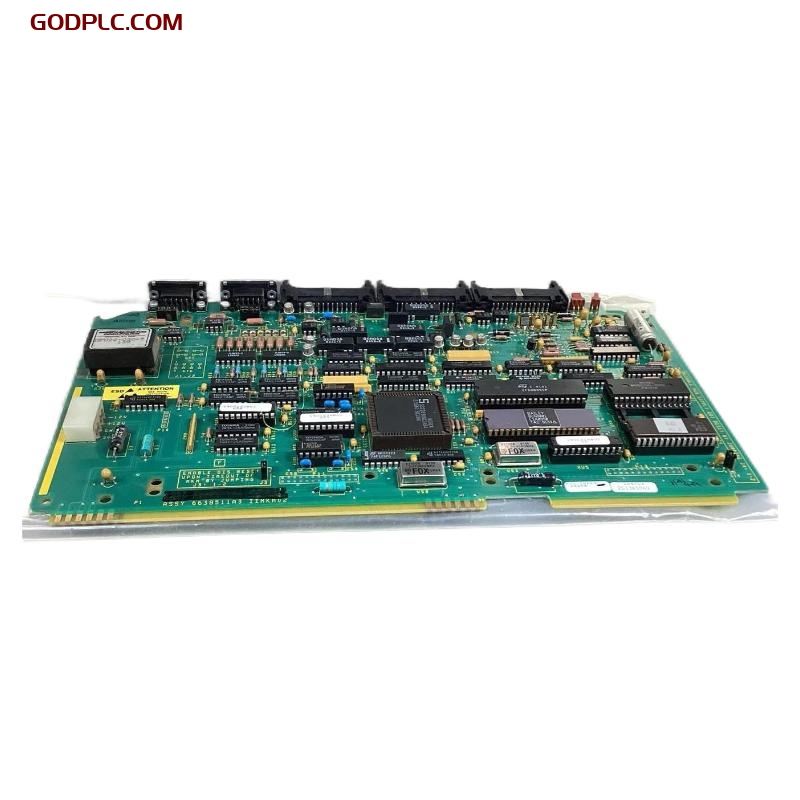

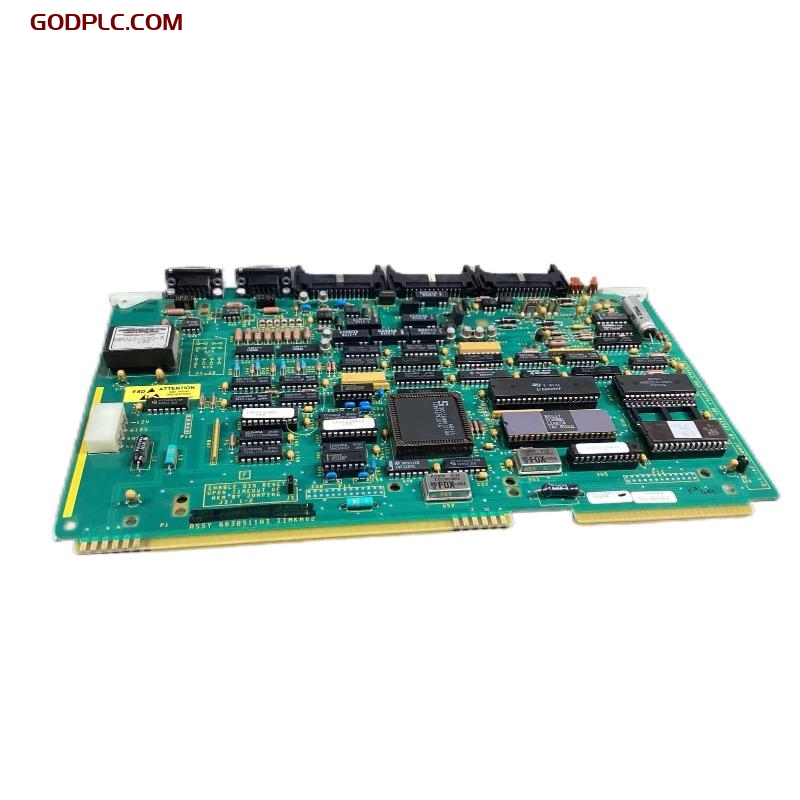

ABB Bailey IIMKM02 6638511A3 Multi-bus keyboard module
ABB Bailey IIMKM02 6638511A3 Multi-Bus Keyboard Module Overview
The ABB Bailey IIMKM02 6638511A3 Multi-Bus Keyboard Module is a critical component of the ABB Infi 90 Distributed Control System (DCS). Designed to provide operators with a user-friendly interface for monitoring and controlling various industrial processes, this keyboard module integrates seamlessly into the Infi 90 system to offer robust communication capabilities. The IIMKM02 allows operators to interact directly with the control system, offering an efficient means of controlling multiple communication buses within the system.
The IIMKM02 module provides a highly effective and ergonomic solution for managing and operating complex industrial control systems. With its multi-bus communication functionality, it supports the simultaneous operation of different control networks, enabling greater flexibility and redundancy in control operations. This makes it particularly valuable in large-scale, mission-critical applications where system reliability and uptime are crucial.
This keyboard module features a high-resolution LCD display and user-friendly buttons, designed to facilitate easy navigation and data input. It offers the capability to display real-time process data, status information, alarms, and other important system parameters, ensuring operators can monitor critical processes at a glance. Additionally, the module is equipped with diagnostic tools to monitor the health of communication buses, aiding in early fault detection and minimizing downtime.
The IIMKM02 is designed for use in industrial environments where high performance, reliability, and ease of use are essential. It provides precise, real-time control over process variables and is optimized for use in a variety of industries, including power generation, chemical processing, and manufacturing automation.
Key Features:
- Multi-Bus Communication Support: Manages and controls multiple communication buses simultaneously, enhancing system flexibility and fault tolerance.
- User-Friendly Interface: Features an ergonomic design with a high-resolution LCD display and easy-to-use buttons for intuitive operation.
- Real-Time Monitoring: Displays real-time process data, alarms, and status information to keep operators informed and in control of critical systems.
- Diagnostic Tools: Includes built-in diagnostics for monitoring communication buses and detecting faults, improving system reliability.
- High-Resolution Display: A clear, easy-to-read display for status updates, process data, and alarms, even in demanding environments.
- Redundancy and Reliability: Built-in redundancy ensures high availability and minimizes system downtime in critical applications.
- Ergonomic Design: Designed with operator comfort in mind, ensuring ease of use during extended periods of operation.
- Industrial-Grade Durability: Engineered to withstand harsh industrial environments, including extreme temperatures, vibrations, and electrical noise.
- Flexible Integration: Fully compatible with the ABB Infi 90 DCS, allowing easy integration with other system components.
- Enhanced System Control: Enables precise, real-time control and monitoring of industrial processes.
Applications: The IIMKM02 Multi-Bus Keyboard Module is used in various industries where real-time control, monitoring, and communication are critical. Some key applications include:
- Power Generation: Provides an interface for controlling and monitoring various systems in power plants, including turbines, boilers, and cooling systems.
- Chemical Processing: Used in chemical plants to monitor and control critical processes such as temperature, pressure, and flow rates.
- Oil & Gas: Facilitates the management of complex systems in oil refineries and gas processing plants.
- Manufacturing Automation: Ideal for controlling automated production lines and robotic systems, ensuring smooth and efficient operations.
- Water Treatment: Used in water and wastewater treatment plants to monitor and control various processes like flow rates and chemical dosing.
The IIMKM02 Multi-Bus Keyboard Module is a powerful tool for maintaining control and operational efficiency in industrial control systems, making it an essential component for mission-critical applications.
Specifications:
| Parameter | Value |
|---|---|
| Module Type | Multi-Bus Keyboard Module |
| Communication Interfaces | Multi-Bus communication support |
| Display | LCD, high-resolution |
| Buttons | 16 buttons (programmable) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 160 mm x 120 mm |
| Weight | 1.2 kg |
| Power Supply | 24 VDC (from DCS) |
| Mounting Type | Rack Mount |
| LED Indicators | Yes (for status, error, and alarms) |
| Reliability | High (designed for industrial use) |
| Redundancy | Yes (for fault tolerance) |
| User Interface | 16 programmable keys, LCD display |
| Enclosure Rating | IP54 (dust and water-resistant) |
Related Models:
| Model | Description |
|---|---|
| IIMKM01 | Basic Multi-Bus Keyboard Module |
| IIMKM03 | Advanced Multi-Bus Keyboard Module with Touchscreen |
| IIMKM04 | Compact Multi-Bus Keyboard Module |
| IIMKM05 | High-Speed Multi-Bus Keyboard with Enhanced Features |
| IIMKM06 | Multi-Bus Keyboard with Extended Protocol Support |
| IIMKM07 | Ergonomic Multi-Bus Keyboard Module |
| IIMKM08 | Industrial Multi-Bus Keyboard with Touch Interface |
| IIMKM09 | Multi-Bus Keyboard for Power Generation Systems |
| IIMKM10 | Multi-Bus Keyboard for Chemical Process Control |
| IIMKM11 | Robust Multi-Bus Keyboard for Harsh Environments |
ABB Bailey IIMKM02 6638511A3 is in stock. Contact us for quick quotes and competitive prices.
